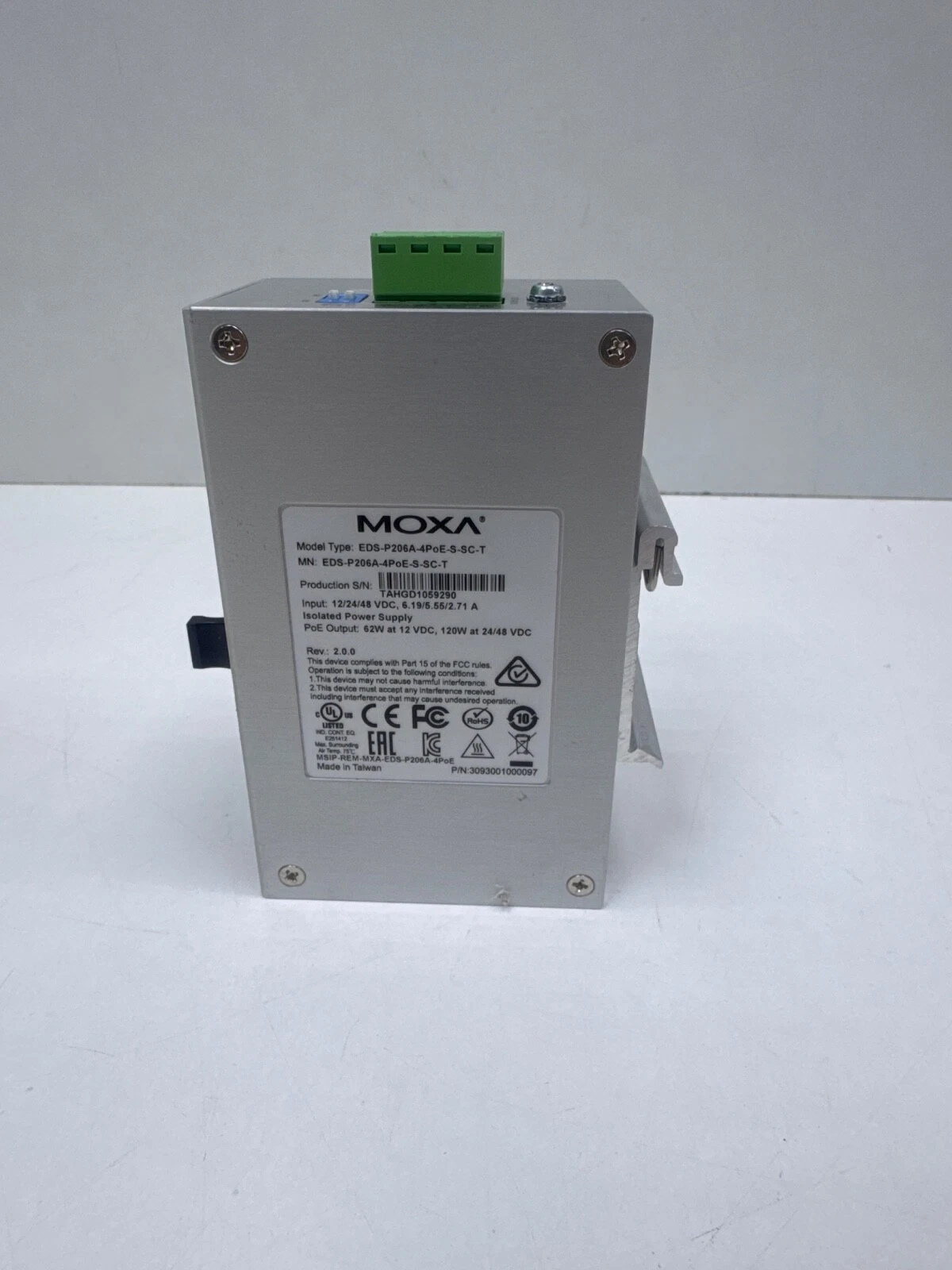

MOXA EDS‑P206A‑4PoE‑S‑SC‑T Unmanaged P0E Ethernet Switch
The MOXA EDS‑P206A‑4PoE‑S‑SC‑T is a robust unmanaged Ethernet switch designed for industrial environments. It offers 1 RJ45 Ethernet port, 4 PoE RJ45 ports, and a single-mode fiber port with SC connector. This switch ensures reliable network performance and easy deployment for seamless industrial connectivity in Bangladesh.
Specification Table
| Feature | Specification |
|---|---|
| Ethernet Interfaces | 1 × 10/100BaseT(X) RJ45 port |
| PoE Copper Ports | 4 × 10/100BaseT(X) RJ45 PoE ports |
| Fiber Port | 1 × 100BaseFX single-mode fiber port with SC connector |
| PoE Output per Port | Up to 30 W per PoE port |
| Total PoE Power Budget | Up to 120 W for all powered devices |
| Input Voltage | 12 to 57 VDC (supports redundant dual inputs) |
| Input Current (typical) | ~5.55 A @ 24 VDC |
| Packet Buffer Size | 768 kbits |
| MAC Table Size | 2 K entries |
| Switching Type | Store & Forward |
| Housing / Ingress Rating | Metal housing, IP30 rating |
| Dimensions | 50.3 × 114 × 70 mm |
| Weight | ~375 g |
| Operating Temperature | –40 °C to 75 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | 5% to 95% non-condensing |
| EMI / EMC / EMS Standards | CISPR 32 / FCC Part 15B Class A; IEC 61000-4 series |
| MTBF | ~1,289,258 hours |
| Warranty | 5 years |
Description:
The MOXA EDS‑P206A‑4PoE‑S‑SC‑T is a rugged, unmanaged industrial Ethernet switch designed for PoE deployments in harsh environments. It has one standard 10/100BaseT(X) port, four PoE RJ45 ports (each up to 30 W), and one single-mode fiber port with SC connector for long-distance link extension. Its wide operating temperature range (–40 °C to 75 °C) and metal IP30 housing make it ideal for factory floors, outdoor cabinets, or transportation systems.
The switch powers devices such as IP cameras, wireless access points, or industrial sensors directly through the network cable, eliminating the need for separate power supplies. The fiber port provides a reliable backbone over long distances and protects against electrical noise. With redundant DC power inputs, store-and-forward switching, and efficient MAC table and buffer handling, it offers plug-and-play simplicity with industrial reliability. This switch is perfect for stable, PoE-enabled connectivity in mission-critical industrial networks.
Key Features
- 6-Port Industrial Switch: 2 × 10/100BaseT(X) copper ports + 4 × 100BaseFX single-mode fibre ports with SC connectors.
- PoE Support: 4 PoE ports compliant with IEEE 802.3af/at, delivering up to 30W per port to power cameras, APs, and other devices.
- Unmanaged Operation: Plug-and-play design, requiring no configuration for simple installation.
- Rugged Industrial Design: IP30 metal housing, DIN-rail mountable, operating temperature range from -10 °C to +60 °C.
- High Reliability: Dual redundant power inputs with overload and short-circuit protection.
- Long-Distance Fibre Links: Single-mode SC fibre ports allow data transmission up to 15 km.
- Industrial Certifications: Compliant with IEC standards for EMI, EMS, and safety, suitable for harsh industrial environments.
Where It Can Be Used
- Factory Automation: Connects Ethernet-enabled devices, cameras, and sensors on production floors.
- Surveillance Systems: Powers and connects IP cameras in remote or outdoor facilities using PoE and fibre links.
- Transportation Networks: Railway, road, or traffic monitoring networks that require long-distance single-mode fibre connectivity.
- Utilities & Infrastructure: Power plants, water treatment, and substation networks needing robust PoE and fibre connections.
- Remote Industrial Sites: Ideal for harsh and unattended environments where low-maintenance unmanaged switches are preferred.
Installation Steps
- Unpack & Inspect: Check that all items are present and free from damage.
- Mounting: Install on a DIN-rail or wall-mount using the included kit.
- Power Connection: Connect DC power to the dual inputs for redundancy.
- Device Connection: Plug Ethernet devices into copper ports; connect fibre devices using SC connectors.
- PoE Deployment: Devices automatically receive power via PoE ports.
- Testing: Verify that LED indicators for link/activity and PoE status are operational.
User Experience
- Plug-and-Play Simplicity: Quick deployment with no configuration needed.
- Reliable PoE Power: Supports cameras, APs, and sensors without additional adapters.
- Rugged and Durable: Handles vibrations, electrical noise, and industrial temperatures.
- Long-Distance Fibre Connectivity: Single-mode SC ports allow stable communication over distances up to 15 km.
- Low Maintenance: Minimal monitoring required after installation, ideal for remote or harsh industrial environments.
What is the price of MOXA EDS‑P206A‑4PoE‑S‑SC‑T Unmanaged Ethernet Switch in Bangladesh?
The estimated price of MOXA EDS‑P206A‑4PoE‑S‑SC‑T Unmanaged Ethernet Switch in Bangladesh is 0৳. You can buy the MOXA EDS‑P206A‑4PoE‑S‑SC‑T Unmanaged Ethernet Switch at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
