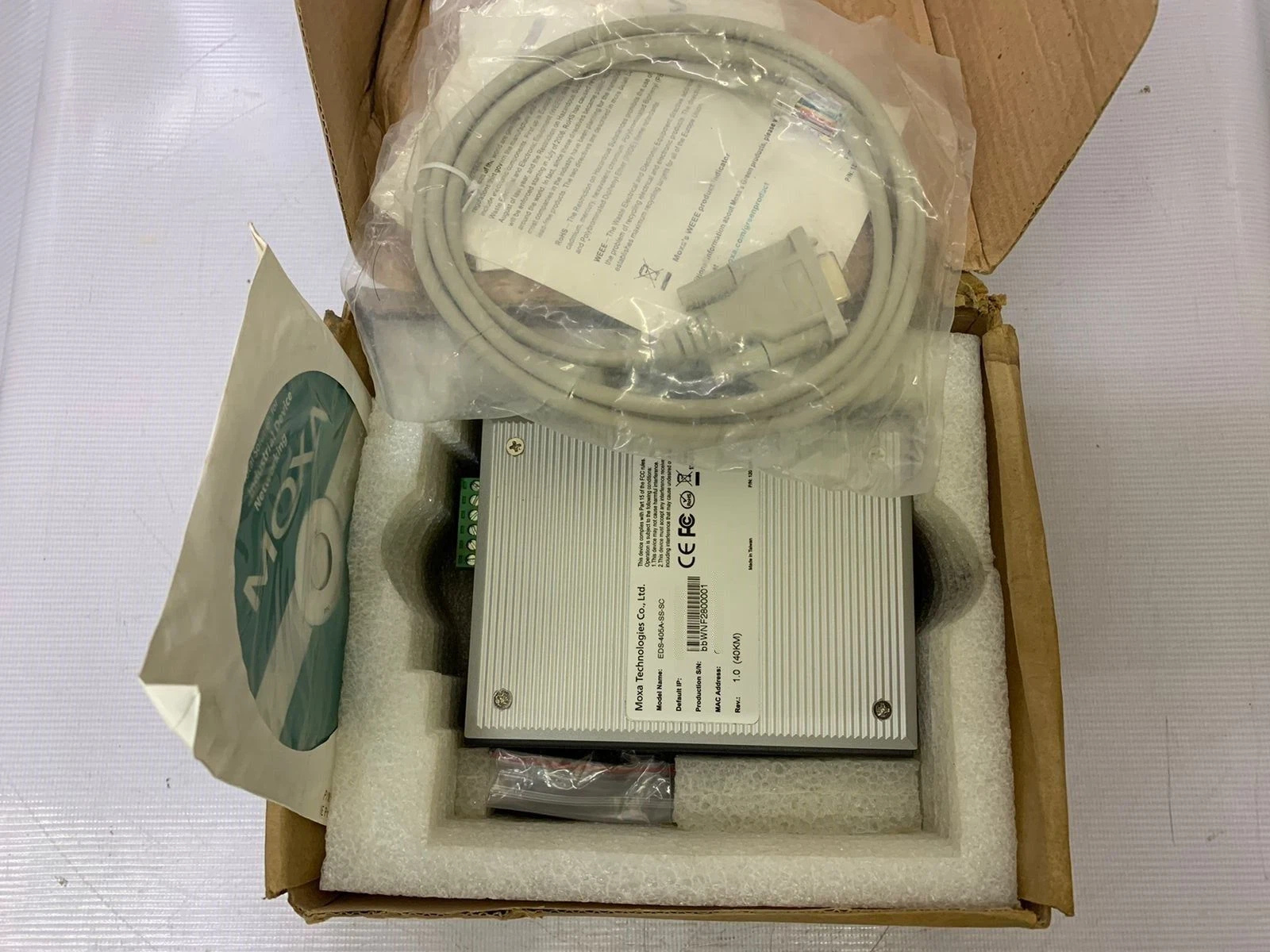

Moxa EDS-405A-SS-SC Managed Redundant Switch
The Moxa EDS-405A-SS-SC Managed Redundant Switch is engineered for industrial networks requiring maximum uptime and reliability in harsh environments. With fiber SC connectivity and advanced redundancy features, it ensures stable data transmission across mission-critical systems. Get the best deals in Bangladesh from Moxa Bangladesh with guaranteed authenticity and premium support.
Specification Table
| Parameter | Value |
|---|---|
| Ethernet Ports (10/100BaseT(X), RJ45) | 3 ports (auto‑negotiation, full/half duplex, auto MDI/MDI‑X) |
| Fibre Ports (100BaseFX single‑mode, SC connector) | 2 ports |
| Optical Fibre Cable Type (single‑mode) | G.652 single‑mode; typical distance ~40 km |
| Software Features | VLAN (802.1Q), port‑based VLAN, IGMP v1/v2, GMRP, GVRP, QoS (802.1p, TOS/DiffServ), RMON, bandwidth management, port mirroring |
| Redundancy Protocols | Turbo Ring / Turbo Chain (< 20 ms recovery at full load), RSTP/STP |
| Management & Security | SNMP v1/v2c/v3, HTTPS/SSL, SSH, IPv4/IPv6, LLDP, Syslog, SMTP, DHCP Server/Client, DHCP Option 66/67/82 |
| MAC Table Size | 2 K entries |
| Packet Buffer Size | 1 Mbit |
| Max VLANs | 64 VLANs |
| Alarm Contact / I/O | 1 relay output (1 A @ 24 V DC) |
| Power Input | 12/24/48 V DC redundant dual inputs; operating voltage range 9.6 to 60 V DC |
| Input Current | 0.594 A @12 V DC, 0.286 A @24 V DC, 0.154 A @48 V DC |
| Housing & Mounting | Metal housing, IP30 rated; DIN‑rail mounting (optional wall mounting) |
| Dimensions / Weight | 53.6 × 135 × 105 mm; Weight ≈ 650 g |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non‑condensing |
| Standards & Certifications | UL 508, UL 60950‑1, EN 62368‑1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000‑4‑2/3/4 etc |
Description:
The Moxa EDS‑405A‑SS‑SC is an industrial‑grade managed Ethernet switch designed for robust, redundant network infrastructures. It provides three 10/100BaseT(X) copper ports and two single‑mode fibre ports (100BaseFX, SC connector), supporting both short‑distance and long‑reach connections. This flexibility makes it ideal for industrial applications, including factory automation, transportation, and utilities.
The switch supports advanced Layer‑2 features such as VLAN, port‑based VLAN, GVRP/GMRP, IGMP snooping, QoS, and RMON, enabling efficient traffic management and network monitoring. For redundancy, Turbo Ring and Turbo Chain protocols offer recovery times under 20 ms, while STP/RSTP ensures network stability. Security and management features include SNMP, HTTPS/SSL, SSH, IPv4/IPv6, and DHCP options, along with a relay alarm contact for fault notifications. Its metal IP30 housing and DIN-rail or wall mounting capability make it suitable for harsh environments, with an operating temperature range from –10 °C to +60 °C. Compact, durable, and reliable, the EDS‑405A‑SS‑SC is an ideal solution for mission‑critical industrial networks requiring high availability.
Key Features of Moxa EDS-405A-SS-SC
- Managed Industrial Switch: Provides advanced network management features like VLAN, QoS, IGMP snooping, and network redundancy protocols.
- Redundant Network Support: Supports Moxa’s Turbo Ring and RSTP/STP protocols for ultra-fast recovery in case of network failures.
- Rugged Design: Industrial-grade hardware with operating temperature range from -40°C to 75°C. Resistant to vibration and shock, suitable for harsh environments.
- High Reliability: Dual power inputs for backup power redundancy, ensuring uninterrupted operation.
- Multiple Interfaces: 5-port Ethernet switch with 3 Tx + 2 Fiber ports, supporting both SC and ST fiber connectors.
Where It Can Be Used
- Factory Automation: Ideal for connecting industrial controllers, sensors, and HMIs in production lines.
- Transportation Systems: Suitable for rail, subway, and traffic control networks where reliability is critical.
- Energy & Utilities: Can be deployed in power substations and renewable energy plants for stable communications.
- Oil & Gas Industry: Operates reliably in extreme temperatures and explosive environments with proper enclosures.
Installation Steps
- Mount the switch on a DIN rail or secure with screws in the control cabinet.
- Connect power supply to the dual input terminals for redundancy.
- Connect Ethernet and fiber ports to the existing network devices.
- Configure the network settings through the web interface or Moxa’s management software.
- Test redundancy protocols (Turbo Ring or RSTP) to ensure proper failover.
User Experience
- Ease of Management: Users report straightforward setup with web-based GUI and diagnostic tools.
- Stable Performance: Maintains consistent connectivity even under high network load or harsh environmental conditions.
- Reduced Downtime: Redundant network and power features ensure uninterrupted industrial operations.
- Durable Build: Long lifespan and minimal maintenance in challenging industrial settings.
What is the price of Moxa EDS-405A-SS-SC Managed Redundant Switch in Bangladesh?
The estimated price of Moxa EDS-405A-SS-SC Managed Redundant Switch in Bangladesh is 0৳. You can buy the Moxa EDS-405A-SS-SC Managed Redundant Switch at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
