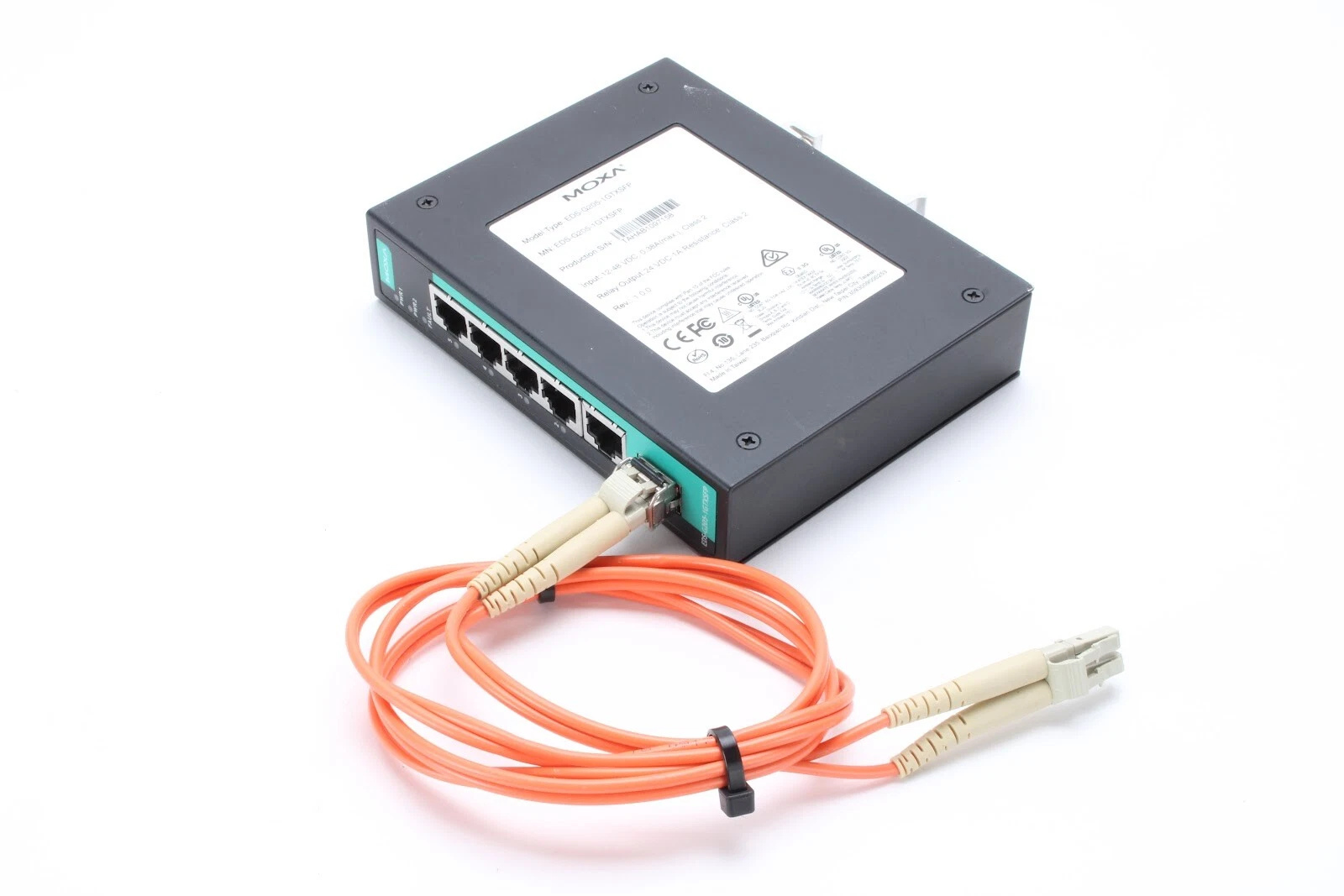

MOXA EDS-G205-1GTXSFP Unmanaged Gigabit Ethernet Switch
The MOXA EDS-G205-1GTXSFP Unmanaged Gigabit Ethernet Switch delivers reliable and high-speed connectivity for industrial automation networks. With rugged design and flexible Gigabit combo ports, it ensures stable data transmission in harsh environments. Buy this durable switch at the best price in BD from Moxa Bangladesh — your trusted industrial networking partner.
Specification Table
| Parameter | Specification |
|---|---|
| Ethernet Ports – RJ45 | 4 × 10/100/1000 BaseT(X) (auto-negotiation, full/half duplex, auto MDI/MDI-X) |
| Combo Port | 1 × Combo port (10/100/1000 BaseT(X) or 100/1000 Base SFP) |
| MAC Table Size | 8 K entries |
| Packet Buffer Size | 1 Mbit |
| Jumbo Frame Support | Up to 10 KB |
| Power Input | 12/24/48 V DC (redundant dual inputs), input range 9.6–60 V DC, reverse polarity protection |
| Alarm Output | 1 relay output (1 A @ 24 V DC) for power failure/port break alarm |
| Physical Housing | Metal housing, DIN-rail mounting (wall mount optional) |
| Dimensions | 29 × 135 × 105 mm (1.14 × 5.31 × 4.13 in) |
| Weight | Approx. 290 g |
| Operating Temperature (standard) | –10 °C to +60 °C |
| Operating Temperature (-T version) | –40 °C to +75 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Protection / Ratings | IP30, built for industrial environments |
| MTBF | Approx. 2,823,446 hours |
Description:
The MOXA EDS-G205-1GTXSFP is a compact, rugged, and high-performance unmanaged Gigabit Ethernet switch designed for industrial automation networks. It features four Gigabit RJ45 ports and one combo port that supports either copper or fiber connections, providing flexible deployment options for a wide range of applications.
Built with reliability in mind, the switch supports redundant 12/24/48 V DC power inputs and includes a relay output alarm for power or port failure notifications, ensuring continuous network uptime. With support for jumbo frames up to 10 KB, an 8K MAC address table, and a 1 Mbit packet buffer, it ensures smooth and efficient data transmission even under heavy network loads.
The EDS-G205-1GTXSFP is housed in a durable metal casing with IP30 protection, suitable for harsh industrial environments. It operates reliably within a wide temperature range of –10 °C to +60 °C, with an extended –40 °C to +75 °C version available for extreme conditions. Its compact DIN-rail mountable design simplifies installation in control cabinets and industrial enclosures.
Ideal for factory automation, intelligent transportation, power substations, and building management systems, the MOXA EDS-G205-1GTXSFP delivers robust, maintenance-free performance for mission-critical industrial networks.
Key Features
- High-Speed Connectivity: 5-port unmanaged Gigabit Ethernet switch with 1 Gigabit combo port (RJ45/SFP slot) for reliable data transmission.
- Industrial-Grade Design: Rugged metal housing ensures durability in harsh industrial environments.
- Wide Temperature Range: Operates efficiently in -10 to 60°C (standard model) or -40 to 75°C (–T model).
- DIN-Rail Mounting: Compact design for easy installation in control panels or cabinets.
- Plug-and-Play Operation: No configuration required; simplifies network expansion.
- High Reliability: Fanless design with low power consumption and high MTBF for long-term stability.
- Redundant Power Input: Dual 12/24/48 VDC power inputs for increased reliability.
Where It Can Be Used?
The MOXA EDS-G205-1GTXSFP is ideal for a wide range of industrial networking applications, including:
- Factory automation and production line monitoring
- Intelligent transportation systems (ITS)
- Oil, gas, and power substation communication
- Security surveillance and IP camera networking
- Marine and railway communication systems
- Remote I/O and SCADA system integration
Installation Step
- Mounting: Secure the switch on a DIN-rail or wall-mounted bracket.
- Power Connection: Connect redundant power supplies (12/24/48 VDC).
- Network Cabling: Insert Ethernet cables into RJ45 ports; use SFP slot for fiber connection if required.
- Power On: Check the LED indicators for power and link status.
- Operation: Once powered, the switch automatically starts forwarding data without any configuration.
User Experience
Users report that the MOXA EDS-G205-1GTXSFP delivers excellent stability, easy installation, and zero maintenance performance. Its rugged design and high-speed data handling make it perfect for critical industrial environments. With silent operation, minimal downtime, and long life expectancy, this switch ensures smooth communication in both small and large-scale industrial networks.
