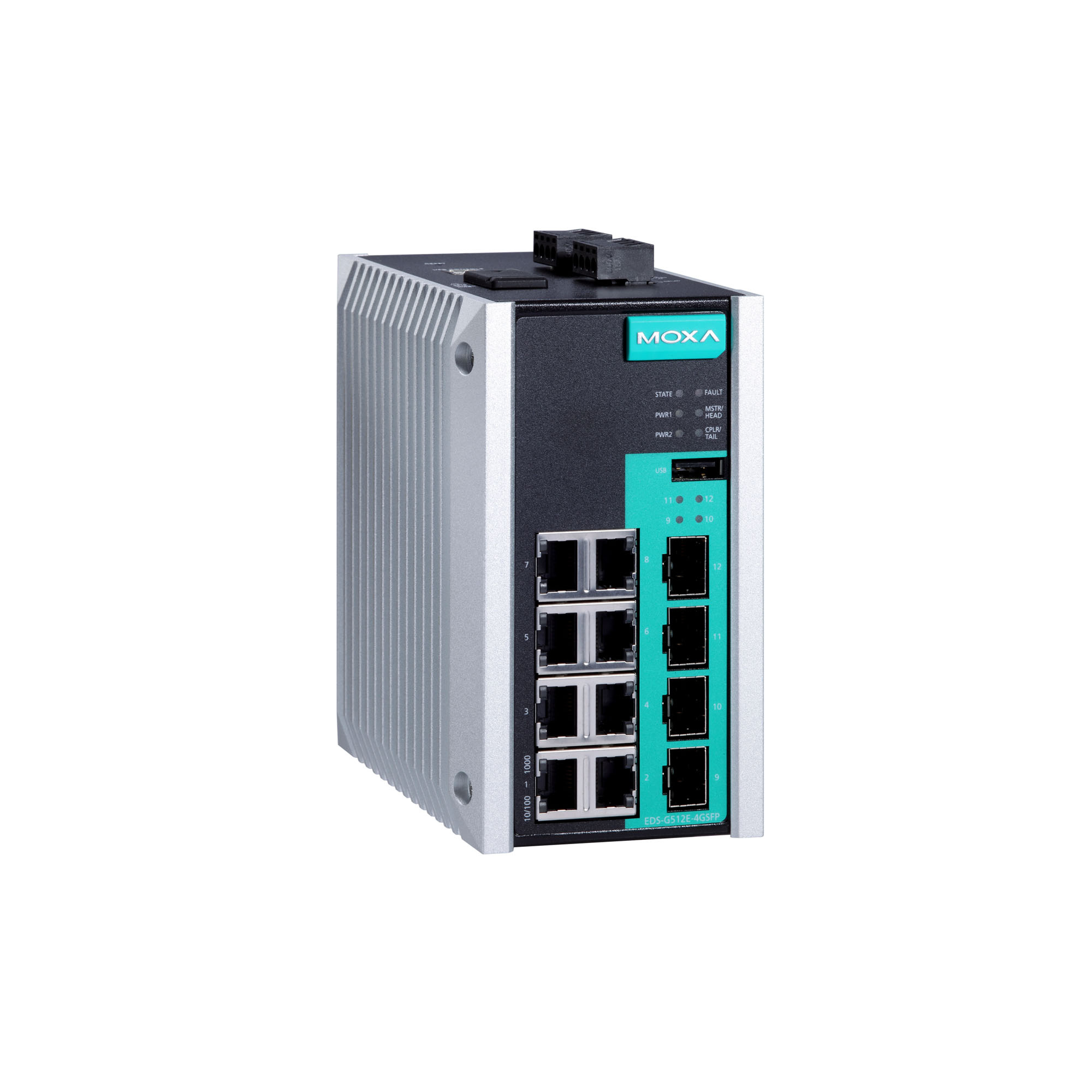

MOXA EDS-G512E-8PoE-4GSFP Managed PoE+ Ethernet Switches
The MOXA EDS-G512E-8PoE-4GSFP is a rugged industrial-grade managed PoE+ Ethernet switch engineered for high-power devices and critical automation networks. With 8 PoE+ ports and 4 Gigabit SFP slots, it delivers fast data throughput, stable performance, and advanced network management capabilities. Ideal for factories, ITS, power utilities, and harsh environments, this switch ensures reliability and seamless operation across industrial infrastructures.
Specification Table
| Specification | Detail |
|---|---|
| Ports – RJ45 PoE/PoE+ | 8 × 10/100/1000 BaseT(X) PoE/PoE+ ports (IEEE 802.3af/802.3at) |
| Ports – Fiber SFP | 4 × 100/1000 Base SFP slots |
| Total Ports | 12‑port full Gigabit managed switch |
| PoE Output per Port | Up to 36 W per PoE+ port |
| Total PoE Power Budget | Up to 240 W total |
| Management & Features | Layer 2 managed: VLAN, IGMP snooping, QoS, Port‑Trunking, Link Aggregation, RSTP/MSTP/STP, Turbo Ring/Chain, EtherNet/IP, Modbus TCP, PROFINET, SNMPv1/v2c/v3, HTTPS/SSH, TACACS+, 802.1X, RADIUS, MAC ACL, sticky MAC |
| Power Input | 48 V DC (44–57 V DC), 2 removable terminal blocks, input current 5.3 A @ 48 V DC |
| Housing & Mounting | Metal, IP30 rated, DIN‑rail or wall mount |
| Dimensions | 79.2 × 135 × 137 mm |
| Weight | 1.54 kg |
| Operating Temperature | Standard: –10 °C to +60 °C; Extended: –40 °C to +75 °C |
| Certifications & Standards | UL 508, EN 62368‑1, EMI/EMS per IEC 61000, Industrial: IEC 61850‑3, IEEE 1613, EN 50121‑4, NEMA TS2 |
Description:
The MOXA EDS-G512E-8PoE-4GSFP is an industrial-grade managed Ethernet switch designed to meet the high-performance demands of modern industrial networks. It features 8 Gigabit PoE/PoE+ ports and 4 Gigabit SFP slots, providing flexible connectivity options for both copper and fiber networks. Each PoE+ port delivers up to 36 W, allowing the switch to power a variety of devices such as IP cameras, wireless access points, or industrial I/O devices directly through the Ethernet cable, reducing the need for additional power sources.
This switch supports advanced Layer 2 management functions including VLANs, QoS, link aggregation, RSTP/MSTP, and fast redundancy protocols like Turbo Ring and Turbo Chain, ensuring network reliability and minimal downtime. Comprehensive security features like 802.1X authentication, SNMPv3, TACACS+, and MAC-based access control enhance network safety. Housed in a rugged metal IP30 enclosure, it withstands harsh industrial environments with wide operating temperature options, making it suitable for applications in factory automation, transportation, and smart city networks. The switch’s combination of power, flexibility, and reliability makes it an ideal solution for critical industrial Ethernet deployments where performance and uptime are essential.
Key Features
- 12 Gigabit ports: 8 × 10/100/1000 BaseT(X) PoE/PoE+ ports + 4 × 100/1000 Base SFP slots.
- Supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards; up to 36 W per port in high‑power mode.
- Total power budget for powered devices (PDs) up to 240 W.
- Managed Layer‑2 switching features: VLAN (802.1Q), IGMP snooping, GVRP, QoS (802.1p/1Q, DiffServ), port‑trunking, redundant ring/chain protocols (Turbo Ring/Chain, RSTP/MSTP).
- Industrial‑grade design: metal housing (IP30), DIN‑rail and optional wall mounting; operating temperature for “‑T” version: –40 °C to +75 °C.
- High‑security features: SNMP v3, HTTPS/SSL, SSH, RADIUS, TACACS+, IEEE 802.1X, MAC ACL, sticky MAC addresses.
- Protocol support for industrial networks: EtherNet/IP, PROFINET IO Device, Modbus TCP.
- USB‑Type A storage port, USB‑serial console (Type B), alarm contact relay output.
Where It Can Be Used
The EDS‑G512E‑8PoE‑4GSFP is ideal for demanding industrial, enterprise, or mission‑critical network environments:
- Industrial automation & process control — deploying PoE devices like IP cameras, wireless access points, and sensors in factory or plant environments.
- Transportation infrastructure — road/tunnel surveillance, railway signalling, mass transit communication networks.
- Utility & critical infrastructure — power substations, water/waste‑water treatment plants, oil & gas installations.
- Enterprise backbone & aggregation — combining fiber (SFP) links with PoE endpoints for high‑bandwidth connectivity.
- Surveillance & security systems — supporting multiple high‑resolution PoE cameras, including outdoor devices requiring full PoE+ power.
Installation Steps
- Unpack & inspection: Check for any transit damage and confirm accessories.
- Mounting: Install on DIN‑rail or wall, ensuring proper ventilation and grounding.
- Power connection: Connect dual power inputs (44 – 57 V DC), check PWR LEDs.
- Link fiber and copper ports: Insert SFP modules for uplinks; connect PoE endpoints.
- Initial configuration: Access console via USB‑serial or network; configure IP, VLANs, QoS, redundancy protocols, and PoE settings.
- Verify operation: Ensure all PoE devices are powered, fiber links active, redundancy protocols working.
- Ongoing monitoring & maintenance: Use SNMP/statistics and periodically check firmware; ensure environment remains within specs.
User Experience
- High reliability in harsh environments — operates in –40 °C to +75 °C range with metal housing.
- Simplified PoE management — schedule PoE, monitor devices, and provide full 36 W per port for high-power endpoints.
- Robust network redundancy — Turbo Ring/Chain and RSTP/MSTP protocols ensure minimal downtime.
- Flexible fiber + copper design — 8 copper PoE ports plus 4 SFP slots for uplinks.
- Advanced security & manageability — SNMPv3, SSH/HTTPS, ACLs, VLAN/QoS features suitable for industrial and security networks.
- High-bandwidth PoE-rich deployments — ideal for video surveillance, wireless infrastructure, and transportation systems.
