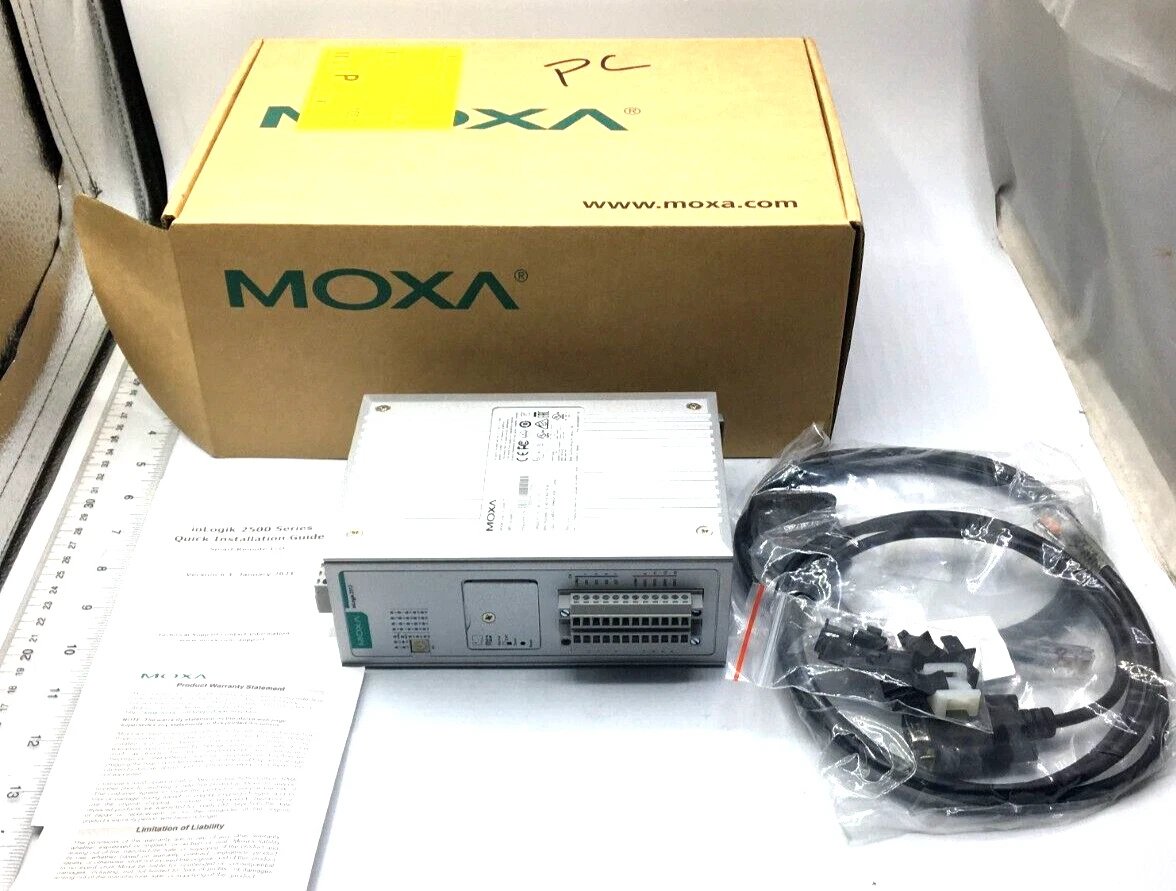

MOXA ioLogik 2512 Universal Ethernet I/O Controller
The MOXA ioLogik 2512 is a versatile Universal Ethernet I/O Controller designed for industrial automation and remote monitoring. It provides reliable digital and analog I/O connectivity over Ethernet networks. Available now at the best price in BD from Moxa Bangladesh, this controller ensures seamless integration for all industrial applications.
Specification Table
| Specification | Value |
|---|---|
| Digital Inputs (DI) | 8 channels |
| Digital I/O (configurable) | 8 channels (DIO) |
| Ethernet Ports | 4 × 10/100 BaseT(X) switch ports (RJ-45) |
| Serial Ports | 2 serial ports (RS-232/422/485) |
| Power Input Voltage | 12 to 48 VDC |
| Power Consumption | Approx. 254 mA @ 24 VDC; 529 mA @ 12 VDC; 133 mA @ 48 VDC |
| Housing / Enclosure | Metal housing, rated IP30 |
| Dimensions | 61 × 157 × 115 mm (2.4 × 6.18 × 4.53 in) |
| Weight | 1,265 g (≈2.79 lb) |
| Environmental – Operating Temp (standard) | -10 °C to +60 °C |
| Environmental – Operating Temp (T-model) | -40 °C to +75 °C |
| Mounting | DIN-rail and optional wall mounting |
| Certifications & Standards | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32; UL 508; ATEX / Class I Division 2 |
| Serial Protocol Support | Modbus RTU Master (via serial) |
| Ethernet Protocol Support | Modbus TCP, SNMP v1/v2c/v3, RESTful API, Active OPC (MX-AOPC) |
| MTBF | Approx. 514,425 hours (Telcordia SR-332 standard) |
Description:
The MOXA ioLogik 2512 is an industrial-grade Universal Ethernet I/O Controller engineered for efficient and reliable remote data acquisition and control. Featuring 8 digital input channels and 8 configurable digital I/O channels, it offers great flexibility for connecting sensors, switches, and other industrial devices. Its built-in 4-port Ethernet switch provides easy device networking without the need for external equipment, while dual serial ports (RS-232/422/485) allow integration with legacy systems.
Designed for harsh environments, the ioLogik 2512 comes with a rugged IP30-rated metal housing, supports both DIN-rail and wall mounting, and operates within wide temperature ranges — from -10 °C to +60 °C for standard models and up to -40 °C to +75 °C for extended-temperature models. The controller supports multiple industrial communication protocols such as Modbus TCP, Modbus RTU, SNMP, RESTful API, and Active OPC, ensuring seamless integration between OT and IT systems.
Its efficient power design supports 12 to 48 V DC input, consuming minimal energy during operation. With a long MTBF and industrial certifications like UL 508 and ATEX, the MOXA ioLogik 2512 is a reliable choice for factory automation, infrastructure, oil and gas, and other mission-critical applications requiring high performance and continuous operation.
Key Features
- Universal I/O Design: Supports multiple I/O types including digital input/output, analog input, and relay output for maximum flexibility.
- Ethernet Connectivity: Equipped with dual Ethernet ports for reliable communication and daisy-chain topology, reducing wiring costs.
- Peer-to-Peer Communication: Enables direct data exchange between I/O devices without requiring a PLC or central controller.
- Smart I/O Logic (Click&Go Plus): Allows event-based control logic to be executed locally for faster response and efficient automation.
- Web-Based Configuration: Easy-to-use web interface for setup, monitoring, and control from any browser.
- Wide Operating Temperature: Designed for harsh industrial environments, operating from -10°C to 60°C.
- Compact and Rugged Design: DIN-rail mountable housing ensures stable performance and easy installation in control panels.
Where It Can Be Used
The MOXA ioLogik 2512 is ideal for industrial automation, remote monitoring, and data acquisition systems. It is commonly used in:
- Factory automation for monitoring machine performance.
- Building management systems for HVAC and lighting control.
- Water and wastewater treatment plants for remote control and data logging.
- Energy management systems for sensor integration and control.
- Transportation and infrastructure monitoring.
Installation Step
- Mounting: Secure the ioLogik 2512 on a DIN rail in your control cabinet.
- Power Connection: Connect the DC power supply (12–36 VDC) to the power terminals.
- Network Setup: Connect Ethernet cables to the LAN ports for network communication.
- I/O Wiring: Connect sensors, relays, and actuators according to the I/O channel specifications.
- Configuration: Access the web console via the IP address to configure I/O types and network settings.
- Testing: Verify signal input/output and monitor device status using the web interface or MXIO library.
User Experience
Users appreciate the simple setup process and robust performance of the MOXA ioLogik 2512. Its intuitive web interface and Click&Go Plus logic minimize programming time, while reliable Ethernet connectivity ensures stable communication in demanding environments. The device’s versatility, durability, and ease of integration make it a top choice for engineers and automation professionals seeking efficient remote I/O solutions.
What is the price of MOXA ioLogik 2512 Universal Ethernet I/O Controller in Bangladesh?
The estimated price of MOXA ioLogik 2512 Universal Ethernet I/O Controller in Bangladesh is 0৳. You can buy the MOXA ioLogik 2512 Universal Ethernet I/O Controller at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
