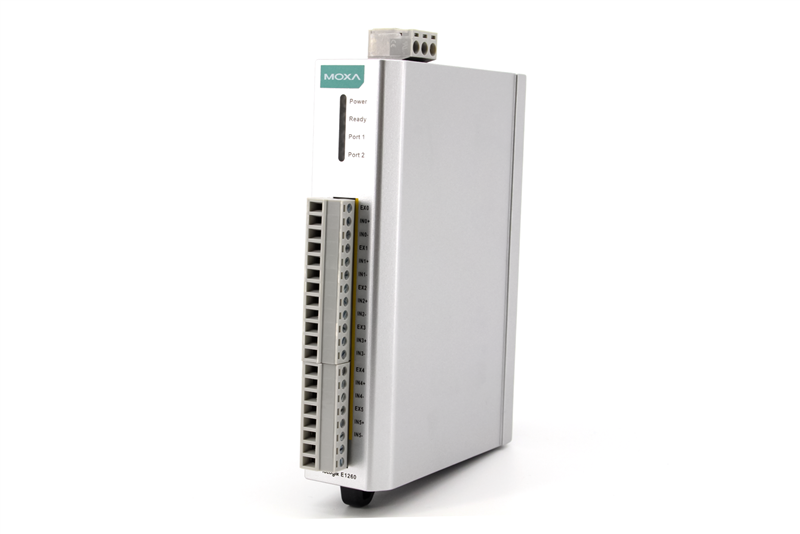

Moxa ioLogik E1213-T Universal I/O Module
The Moxa ioLogik E1213-T Universal I/O Module delivers reliable performance for industrial automation and remote monitoring in harsh environments. Designed with versatile digital and analog I/O, it ensures seamless integration with Ethernet networks. Get the best deal in Bangladesh from Moxa Bangladesh with guaranteed quality and support.
Specification Table
| Parameter | Value |
|---|---|
| Digital Input Channels | 8 |
| Digital Output Channels | 4 |
| Configurable Digital I/O (by jumper) | 4 |
| Isolation | 3 k VDC or 2 k Vrms |
| Connector (I/O) | Screw‑fastened Euroblock terminal |
| Sensor Type (Digital Inputs) | Dry contact or Wet contact (NPN or PNP) |
| Dry Contact Input Condition | On: short to GND; Off: open |
| Wet Contact Input Condition | On: 10 to 30 VDC; Off: 0 to 3 VDC |
| Counter Frequency (DI) | 250 Hz |
| Digital Output Type | Source type |
| Output Current Rating | 500 mA per channel |
| Pulse Output Frequency (DO) | 500 Hz (max) |
| Over‐current Protection | 1.5 A per channel @ 25°C |
| Power Input Voltage | 12 to 36 VDC |
| Power Consumption | 130 mA @ 24 VDC |
| Ethernet Interface | 2 × 10/100BaseT(X) RJ45 ports (embedded switch) |
| Housing & Mounting | Plastic housing; DIN‑rail or wall mounting |
| Dimensions (W × H × D) | 27.8 × 124 × 84 mm |
| Weight | 200 g |
| Operating Temperature | –40°C to +75°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5% to 95% (non‑condensing) |
| Certifications / Standards | EMC: EN 55032/24, EN 61000‑6‑2/‑6‑4; Safety: UL 508 |
Description:
The MOXA ioLogik E1213‑T is an industrial Ethernet remote I/O module designed for applications requiring digital inputs, digital outputs, and configurable I/O channels in a compact and rugged package. With eight digital input channels, four dedicated digital outputs, and four configurable DIO channels, the unit provides a flexible interface for monitoring and controlling field devices such as sensors, switches, and actuators over Ethernet networks. Its built-in dual 10/100 Mbps Ethernet ports allow daisy-chain topology, reducing wiring costs and simplifying network layout. The module supports widely used industrial protocols including Modbus TCP and EtherNet/IP, as well as IT-oriented features like RESTful API and SNMP, making it suitable for both OT and IT integration. It accepts a wide power input range of 12‑36 VDC and operates in harsh conditions from –40°C up to +75°C, making it ideal for factory automation, remote monitoring, railway, or outdoor installations. Screw-terminal connectors, plastic housing, and DIN-rail/wall mounting enhance installation convenience. With over-current protection on outputs, robust isolation, and industrial certifications, the E1213‑T delivers reliable, versatile performance for industrial I/O network applications.
Key Features
- Universal Input/Output Design: Supports both analog and digital I/O channels for flexible signal handling.
- 12 Universal Channels: Each channel can be configured for AI, DI, or DO, reducing hardware variety and simplifying maintenance.
- Ethernet Connectivity: Equipped with dual Ethernet ports for daisy-chain network topology and easy field expansion.
- Wide Operating Temperature: Operates reliably from -40 to 75°C, suitable for harsh industrial environments.
- Smart Software Integration: Compatible with Moxa’s Active OPC Server and MX-AOPC UA Suite for seamless SCADA and PLC integration.
- Real-Time Monitoring: Provides instant I/O status updates and event-driven data transmission.
- Compact DIN-Rail Design: Easy installation and space-efficient setup in control cabinets.
Where It Can Be Used
The Moxa ioLogik E1213-T is ideal for industrial automation, building management, water treatment systems, and energy monitoring. It is commonly deployed in remote I/O data acquisition, environmental monitoring, and machine automation. Its rugged design ensures dependable performance in oil and gas facilities, substations, and factory floors where reliability and precision are critical.
Installation Steps
- Mount the Module: Secure the ioLogik E1213-T on a DIN rail inside the control cabinet.
- Connect Power Supply: Apply the proper DC voltage (typically 12–24 VDC).
- Wire the I/O Points: Connect sensors and actuators to the universal I/O terminals.
- Network Setup: Connect Ethernet cables to the network ports and assign an IP address.
- Configure via Web Console or Software: Access the module through a web browser or Moxa configuration tools to set I/O modes and communication protocols.
- Integrate with SCADA/PLC: Link with existing monitoring systems using Modbus/TCP or MX-AOPC UA.
User Experience
Users appreciate the plug-and-play configuration, multi-protocol compatibility, and high reliability of the ioLogik E1213-T. The intuitive web interface simplifies setup, while real-time status monitoring enhances operational efficiency. Its versatile I/O design reduces the need for multiple module types, lowering installation and maintenance costs. In field use, it delivers consistent data accuracy, fast response time, and stable communication, making it a trusted choice for industrial automation engineers.
What is the price of Moxa ioLogik E1213-T Universal I/O Module in Bangladesh?
The estimated price of Moxa ioLogik E1213-T Universal I/O Module in Bangladesh is 0৳. You can buy the Moxa ioLogik E1213-T Universal I/O Module at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
