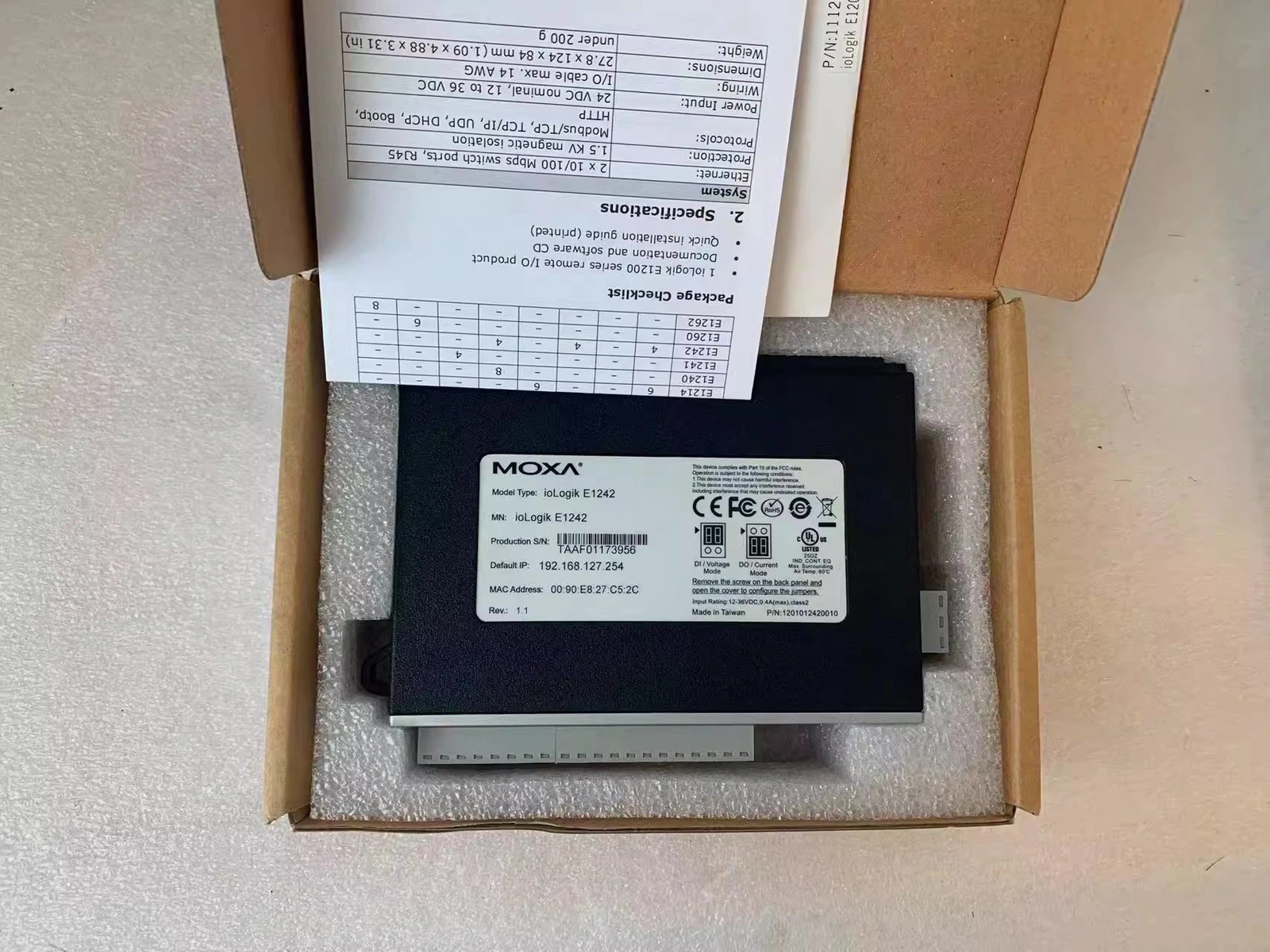

MOXA ioLogik E1242 Remote Ethernet Distributed I/O Module
The MOXA ioLogik E1242 is a high-performance Remote Ethernet Distributed I/O Module designed for industrial automation and data acquisition. It offers reliable digital and analog I/O connectivity with fast Ethernet communication for real-time monitoring. Moxa Bangladesh provides the ioLogik E1242 at the best price in BD, ensuring quality performance for modern automation systems.
Specification Table
| Parameter | Specification |
|---|---|
| Analog Inputs | 4 channels, differential, 0–10 V, 0–20 mA, 4–20 mA (with burn‑out detection) |
| Analog Input Resolution | 16‑bit |
| Analog Input Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ ‑10 to 60°C |
| Analog Input Sampling Rate | 12 samples/sec total per module (shared among channels) |
| Digital Inputs | 4 channels (supports NPN, PNP, dry contact) |
| Digital Output / Configurable DIOs | 4 channels configurable (sink type), current rating 200 mA per channel |
| Digital Output Pulse Output | Up to 500 Hz pulse output frequency |
| Ethernet Interface | 2× 10/100BaseT(X) RJ‑45, built‑in 1.5 kV magnetic isolation |
| Protocols Supported | Modbus TCP (slave), EtherNet/IP (adapter), RESTful API, SNMP v1/v2c, MXIO library |
| Power Input | 12 – 36 V DC nominal; typical consumption ~139 mA @ 24 VDC |
| Physical Dimensions & Weight | 27.8 × 124 × 84 mm (1.09 × 4.88 × 3.31 in); ~200 g |
| Operating Temperature | Standard: ‑10 to 60 °C; Wide‑Temp version: ‑40 to 75 °C |
| Environmental | Storage: ‑40 to 85 °C; Humidity: 5% to 95% non‑condensing |
| Mounting / Housing | Plastic housing; DIN‑rail or wall mounting |
| Certifications / Standards | EN 55032/24, EN 61000‑6‑2/‑6‑4, CISPR 32, FCC Part 15B Class A, UL508, ATEX Class I Division 2 |
Description:
The MOXA ioLogik E1242 is a compact, rugged remote Ethernet I/O module designed for industrial automation applications. It combines 4 analog-input channels, 4 digital input channels, and 4 configurable digital I/O channels in a DIN-rail mountable module with a plastic housing. Its built-in two-port Ethernet switch allows daisy-chain topologies, reducing wiring and infrastructure costs. The device supports a variety of protocols, including Modbus TCP, EtherNet/IP, RESTful API, and SNMP, making it easy to integrate into SCADA, IIoT, and distributed control systems. It handles voltage and current analog inputs, including 4–20 mA with burn-out detection, meeting diverse sensing requirements. Designed for industrial environments, it operates across wide temperature ranges, provides strong electrical isolation, and meets key EMC and safety certifications. Overall, the ioLogik E1242 is a reliable and flexible solution for distributed monitoring and control in industrial automation networks.
Key Features
- 16 Digital Inputs & 16 Digital Outputs: Supports both sinking and sourcing configurations for flexible industrial applications.
- High-Speed Counter: Built-in 32-bit high-speed counter for accurate pulse counting.
- Flexible Communication: Dual Ethernet ports with Modbus/TCP protocol for seamless integration.
- Watchdog & Isolation Protection: Ensures device reliability with 2 kV isolation protection for I/O channels.
- Rugged Design: Operates in extreme temperatures (-40 to 75°C) with shock and vibration resistance.
- Powerful Management: Supports web-based configuration and remote monitoring for easier maintenance.
Where it Can Be Used?
- Factory Automation: Ideal for controlling machinery and monitoring production lines.
- Water & Wastewater Management: Suitable for pump control, level monitoring, and SCADA integration.
- Energy & Utilities: Enables real-time monitoring and control of substations or power plants.
- Transportation Systems: Can be used for traffic signals, railway monitoring, and smart vehicle systems.
- Building Automation: Perfect for HVAC, lighting, and security system control.
Installation Steps
- Mounting: Install the ioLogik E1242 on a DIN rail or secure panel.
- Wiring: Connect digital input/output devices to the respective terminals.
- Ethernet Setup: Connect the dual Ethernet ports to your industrial network.
- Power Supply: Provide a stable 12–48 VDC power input.
- Configuration: Access the device via web interface or Modbus/TCP for I/O mapping and logic settings.
- Testing: Verify inputs/outputs and ensure all remote monitoring features work properly.
User Experience
Users of the MOXA ioLogik E1242 praise its reliability in harsh industrial environments. The dual Ethernet ports and Modbus/TCP protocol simplify network integration, while its high-speed counter ensures precise automation tasks. Remote monitoring allows users to diagnose and control systems without being on-site, reducing downtime. Its rugged design withstands extreme conditions, making it highly dependable for long-term industrial use. Overall, the device offers a seamless experience for engineers and system integrators looking for flexible and durable remote I/O solutions.
What is the price of MOXA ioLogik E1242 Remote Ethernet Distributed I/O Module in Bangladesh?
The estimated price of MOXA ioLogik E1242 Remote Ethernet Distributed I/O Module in Bangladesh is 0৳. You can buy the MOXA ioLogik E1242 Remote Ethernet Distributed I/O Module at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
