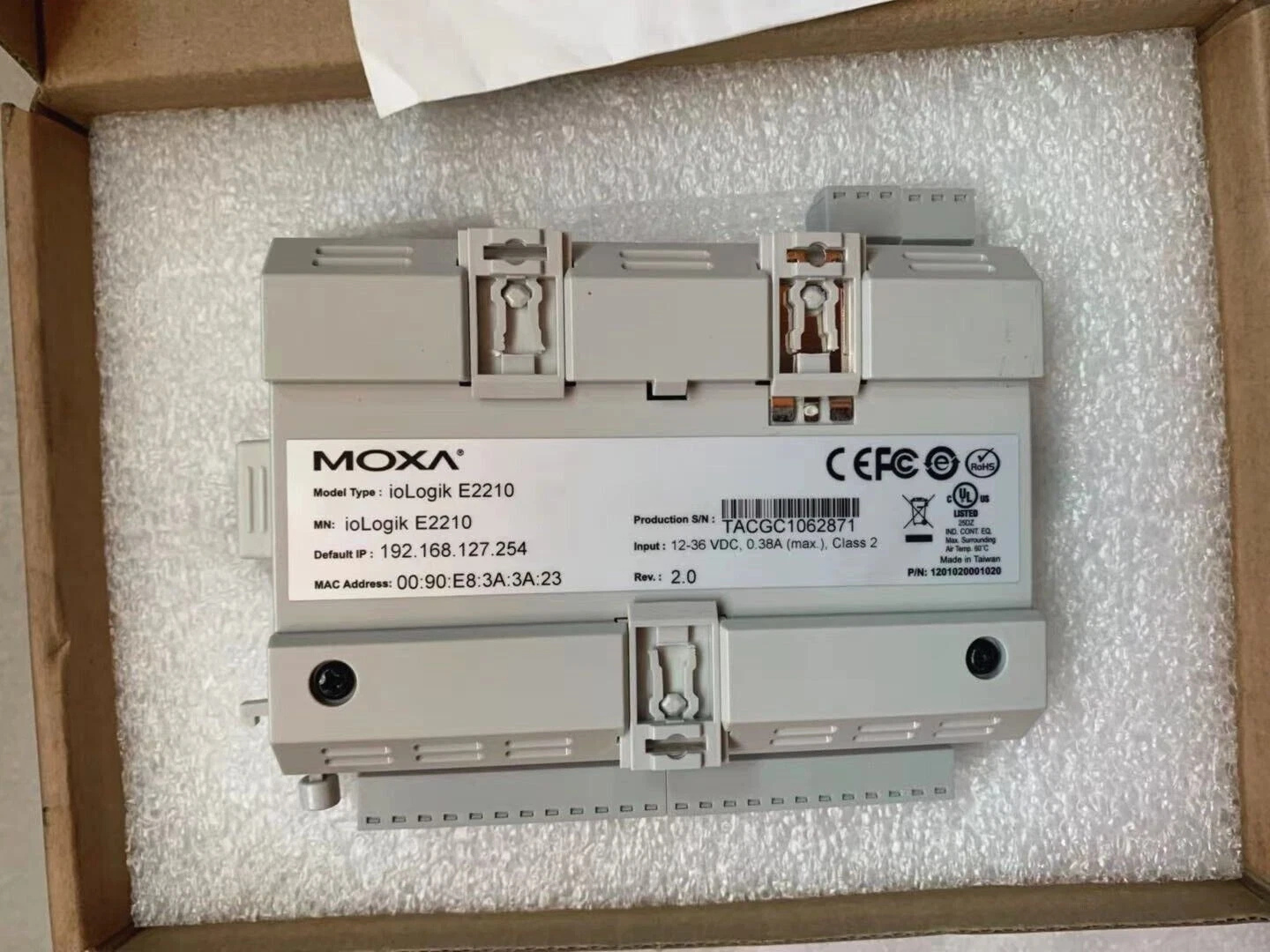

MOXA ioLogik E2210 Digital I/O Controller
The MOXA ioLogik E2210 Digital I/O Controller is a reliable industrial-grade device designed for remote monitoring and automation applications. It ensures fast data acquisition, stable communication, and seamless integration with Ethernet-based systems. Buy the MOXA ioLogik E2210 at the best price in BD from Moxa Bangladesh, your trusted industrial networking supplier.
Specification Table
| Parameter | Specification |
|---|---|
| Digital Input Channels | 12 |
| Digital Output Channels | 8 |
| Digital Input Sensor Types | Dry contact, Wet contact (NPN) |
| Digital Input Mode / Counter | DI or event counter (up to 900 Hz) |
| Digital Output Type | Sink type, DO or pulse output (pulse up to 1 kHz for some models) |
| Output Current Rating | Max 200 mA per channel |
| Isolation (I/O to logic) | 3 k VDC or 2 k Vrms |
| Ethernet Interface | 1 × 10/100BaseT(X) (RJ45) with 1.5 kV magnetic isolation |
| Serial Interface | 1 × RS‑485 (2‑wire) |
| Power Input | 12 to 36 VDC (nominal 24 VDC) |
| Typical Power Consumption | ~203 mA @ 24 VDC |
| Dimensions | 115 × 79 × 45.6 mm |
| Weight | ~250 g |
| Operating Temperature (Standard) | –10 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Protocols & Features | Modbus TCP, SNMP v1/v2c/v3, Web console, Click&Go logic, peer‑to‑peer I/O |
Description:
The MOXA ioLogik E2210 is a compact, industrial‑grade Ethernet remote I/O controller designed for real-time acquisition and control in automation environments. It provides 12 digital input channels and 8 digital output channels, enabling versatile interface to sensors and actuators on the factory floor or remote sites. What sets it apart is its intelligent design: it incorporates MOXA’s Click&Go logic engine which allows users to define up to 24 rules for event-based control and messaging — meaning it can autonomously respond to input changes (such as counter thresholds or digital events) and trigger outputs or alarms without needing a host PLC continuously polling the device.
Connectivity is robust: the unit supports a 10/100 Mbps Ethernet port with full protocol support including Modbus TCP and SNMP v1/v2c/v3, allowing for seamless integration into SCADA or network management systems. For legacy systems or field bus environments, an RS‑485 serial port is also included. The device accepts a wide DC input range (12–36 V), making it suitable for varied power environments. It is built with industrial-grade I/O isolation, supports DIN‑rail or wall mounting, and operates reliably in challenging conditions (‑10 °C to 60 °C standard). With its peer-to-peer communication capability, the ioLogik E2210 can minimize wiring and serve as a flexible remote terminal unit (RTU) in distributed automation deployments.
Key Features
- Compact Design: The MOXA ioLogik E2210 features a space-saving design ideal for industrial automation environments.
- Ethernet Connectivity: Supports 10/100 Mbps Ethernet for fast and reliable data communication.
- 16 Digital Input Channels: Monitors multiple devices and sensors with high precision.
- Support for Active OPC Server: Ensures seamless integration with SCADA and control systems.
- Web-Based Configuration: Easy setup and monitoring through an intuitive web interface.
- Peer-to-Peer Communication: Enables direct data exchange between I/O modules without a central controller.
- Wide Operating Temperature: Designed for harsh environments with reliable performance from -10 to 60°C.
- DIN-Rail Mountable: Simplifies installation in control panels and cabinets.
Where It Can Be Used
The MOXA ioLogik E2210 Digital I/O Controller is widely used in factory automation, building management systems, water treatment plants, and remote monitoring applications. It’s perfect for scenarios where multiple sensors or switches need to be monitored and controlled through an Ethernet network. Its versatility makes it suitable for industrial data acquisition, energy management, and smart infrastructure projects.
Installation Step
- Mount the ioLogik E2210 on a DIN rail securely.
- Connect the Ethernet cable to your network switch or PLC.
- Wire digital input devices (sensors, switches) to the input terminals.
- Power up the unit with the appropriate DC voltage.
- Access the device’s web interface via its IP address.
- Configure channels, communication settings, and I/O mapping as needed.
User Experience
Users appreciate the ease of setup and reliable Ethernet-based performance of the MOXA ioLogik E2210. Its web interface allows fast configuration without additional software, and the device’s rugged build ensures dependable operation even in industrial conditions. Engineers find it especially useful for remote monitoring and control tasks, reducing wiring complexity and improving system efficiency. Overall, it delivers excellent stability, scalability, and cost-effectiveness for modern industrial automation systems.
What is the price of MOXA ioLogik E2210 Digital I/O Controller in Bangladesh?
The estimated price of MOXA ioLogik E2210 Digital I/O Controller in Bangladesh is 0৳. You can buy the MOXA ioLogik E2210 Digital I/O Controller at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
