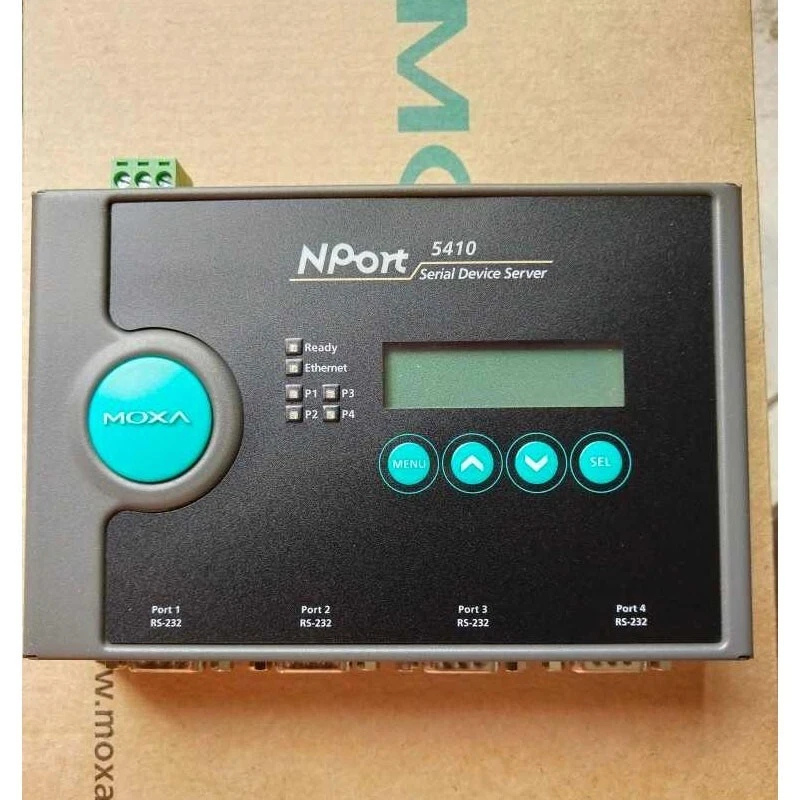

MOXA NPort 5410 4-Port Serial Device Server
The MOXA NPort 5410 is a high-performance 4-port serial device server that enables seamless serial-to-Ethernet communication for industrial devices. It ensures stable data transfer and robust connectivity in demanding environments. Perfect for automation, networking, and industrial control applications in Bangladesh.
Specification Table
| Category | Specification |
|---|---|
| Model | NPort 5410 |
| Ports | 4 x RS-232 (DB9 male) |
| Ethernet Interface | 1 x 10/100BaseT(X) (RJ45) |
| Baud Rate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR |
| Power Input | 12 to 48 VDC (24 VDC for DNV) |
| Power Consumption | 365 mA @ 12 VDC |
| Power Connectors | 1 x Removable 3-contact terminal block, 1 x Power input jack |
| Operating Temp. | 0 to 55°C (standard model) / -40 to 75°C (wide-temperature model) |
| Enclosure | Metal |
| Mounting | DIN-Rail, Wall Mount |
| Certifications | CE, FCC, UL |
| Security Features | HTTPS (TLS 1.2), SNMPv3, AES-128, RSA-1024, SHA-1/SHA-256, Local authentication |
| Management Protocols | ARP, BOOTP, DHCP Client, DNS, HTTP/HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, UDP |
| Configuration Methods | Web Console (HTTP/HTTPS), Telnet Console, Windows Utility |
| Isolation Protection | 1.5 kV built-in magnetic isolation protection |
Key Features
- 4 RS-232/422/485 serial ports for flexible connectivity.
- High-speed Ethernet interface supporting 10/100 Mbps.
- Wide operating temperature range: -40°C to 75°C, ideal for industrial environments.
- Secure and reliable: Supports TCP/IP, UDP, and Modbus/TCP protocols.
- Easy configuration: Web console, Windows utility, and Telnet support.
- Supports serial device redundancy for continuous operation.
- Powerful management tools: SNMP and remote monitoring.
Where it Can Be Used?
The MOXA NPort 5410 is perfect for industrial automation, factory floors, transportation systems, and remote monitoring applications. It allows serial devices like PLCs, sensors, meters, and POS systems to communicate over Ethernet networks. Its robust design makes it suitable for harsh environments such as manufacturing plants, power stations, and outdoor installations.
Installation Step
- Mount the device on a DIN rail or flat surface.
- Connect the serial devices to the four serial ports.
- Connect the Ethernet cable to the network.
- Power on the device using the recommended voltage.
- Configure the IP address and serial parameters using the web console or NPort Windows utility.
- Test communication between serial devices and network applications to ensure proper operation.
What is the price of MOXA NPort 5410 4-Port Serial Device Server in Bangladesh?
The estimated price of MOXA NPort 5410 4-Port Serial Device Server in Bangladesh is 0৳. You can buy the MOXA NPort 5410 4-Port Serial Device Server at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
