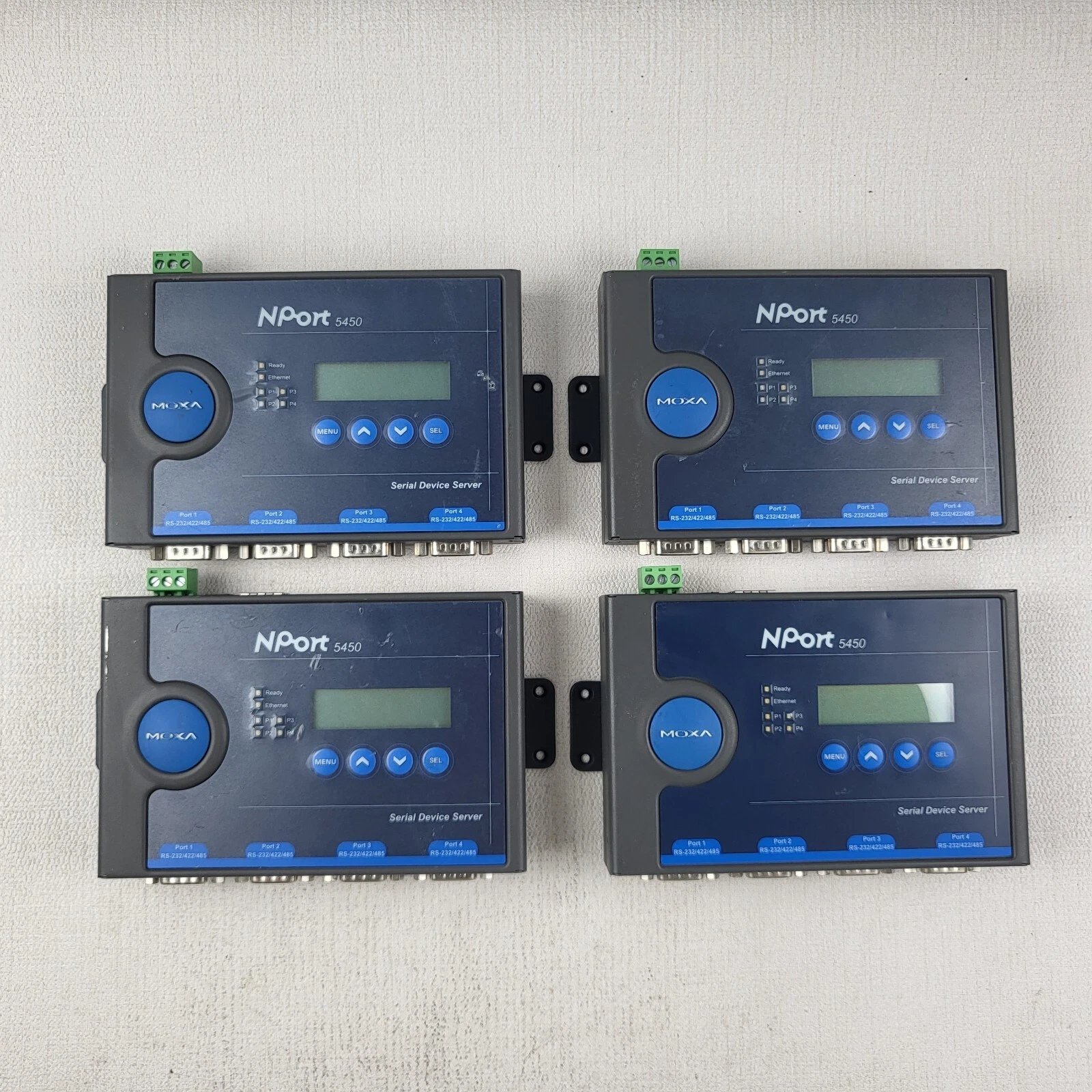

MOXA NPort 5450 Serial Device Server
The MOXA NPort 5450 Serial Device Server offers reliable and efficient serial-to-Ethernet connectivity for industrial applications. Designed for high-performance environments, it supports multiple serial ports with easy network integration. Available at the best price in BD from Moxa Bangladesh, it ensures seamless device communication for your projects.
Specification Table
| Feature | Details |
|---|---|
| Model | NPort 5450 |
| Device Type | Serial Device Server |
| Serial Ports | 4 x RS-232/422/485 |
| Ethernet Port | 1 x 10/100 Mbps RJ45 |
| Serial Communication Speed | 50 bps to 921.6 kbps |
| Operating System Support | Windows, Linux, Unix, and more |
| Protocols Supported | TCP/IP, UDP, DHCP, DNS, SNMP, Telnet, HTTP |
| Power Supply | 12–48 VDC, redundant power input |
| Mounting | DIN-rail or wall-mount |
| Operating Temperature | 0°C to 60°C (standard), -40°C to 75°C (wide temp) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 38 x 144 x 105 mm |
| Weight | 0.7 kg approx. |
| Certifications | CE, FCC, UL, RoHS |
Description:
The MOXA NPort 5450 is a reliable and high-performance serial device server designed to connect multiple serial devices to an Ethernet network efficiently. Supporting four serial ports with RS-232/422/485 interfaces, it allows seamless integration of industrial equipment, such as PLCs, sensors, and meters, into a networked environment. Its flexible communication capabilities, including baud rates up to 921.6 kbps and multiple protocol support like TCP/IP, UDP, and Telnet, ensure compatibility with a wide range of applications.
Equipped with a 10/100 Mbps Ethernet port, the NPort 5450 provides stable and fast data transmission, while features like DHCP and SNMP simplify network configuration and monitoring. The device supports both standard and wide operating temperatures, making it suitable for industrial automation environments with harsh conditions. Redundant power inputs and flexible mounting options, such as DIN-rail or wall mounting, enhance reliability and installation flexibility.
The NPort 5450 also offers robust security and management features, ensuring stable and secure network communication. Its compact design and certifications like CE, FCC, UL, and RoHS confirm both safety and environmental compliance. Overall, the NPort 5450 is an ideal choice for connecting legacy serial devices to modern Ethernet networks in industrial and commercial applications.
Key Features
- High-performance serial device server: Supports 1 to 8 serial ports with RS-232/422/485 interfaces.
- Reliable Ethernet connectivity: 10/100 Mbps Ethernet interface for fast, stable data transmission.
- Advanced network protocols: Supports TCP/IP, UDP, HTTP, and more for flexible integration.
- Secure communication: Built-in security features like SSL, SSH, and user authentication.
- Flexible management: Web-based interface, serial console, and utility software for easy configuration.
- Wide operating temperature: Designed for industrial environments, suitable for harsh conditions.
- Compact and durable: Rugged metal housing ensures long-term reliability.
Where it Can Be Used
- Industrial automation: Connecting PLCs, sensors, and industrial controllers over a network.
- Transportation systems: Managing serial devices in trains, buses, or traffic control systems.
- Energy and utilities: Remote monitoring of power plants, substations, and energy meters.
- Healthcare: Integrating medical devices that rely on serial communication.
- Retail and POS systems: Linking cash registers, barcode scanners, and ticketing machines.
Installation Step
- Mounting: Install the device in a secure, ventilated location using DIN-rail or panel mounting.
- Power connection: Connect to the appropriate DC power supply (typically 12–48V DC).
- Network setup: Connect the device to your Ethernet network using standard cabling.
- Serial device connection: Attach your RS-232/422/485 devices to the respective ports.
- Configuration: Access the web-based interface or NPort configuration utility to set IP, port, and protocol parameters.
- Testing: Verify connectivity and data transmission between network and serial devices.
What is the price of MOXA NPort 5450 Serial Device Server in Bangladesh?
The estimated price of MOXA NPort 5450 Serial Device Server in Bangladesh is 0৳. You can buy the MOXA NPort 5450 Serial Device Server at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
