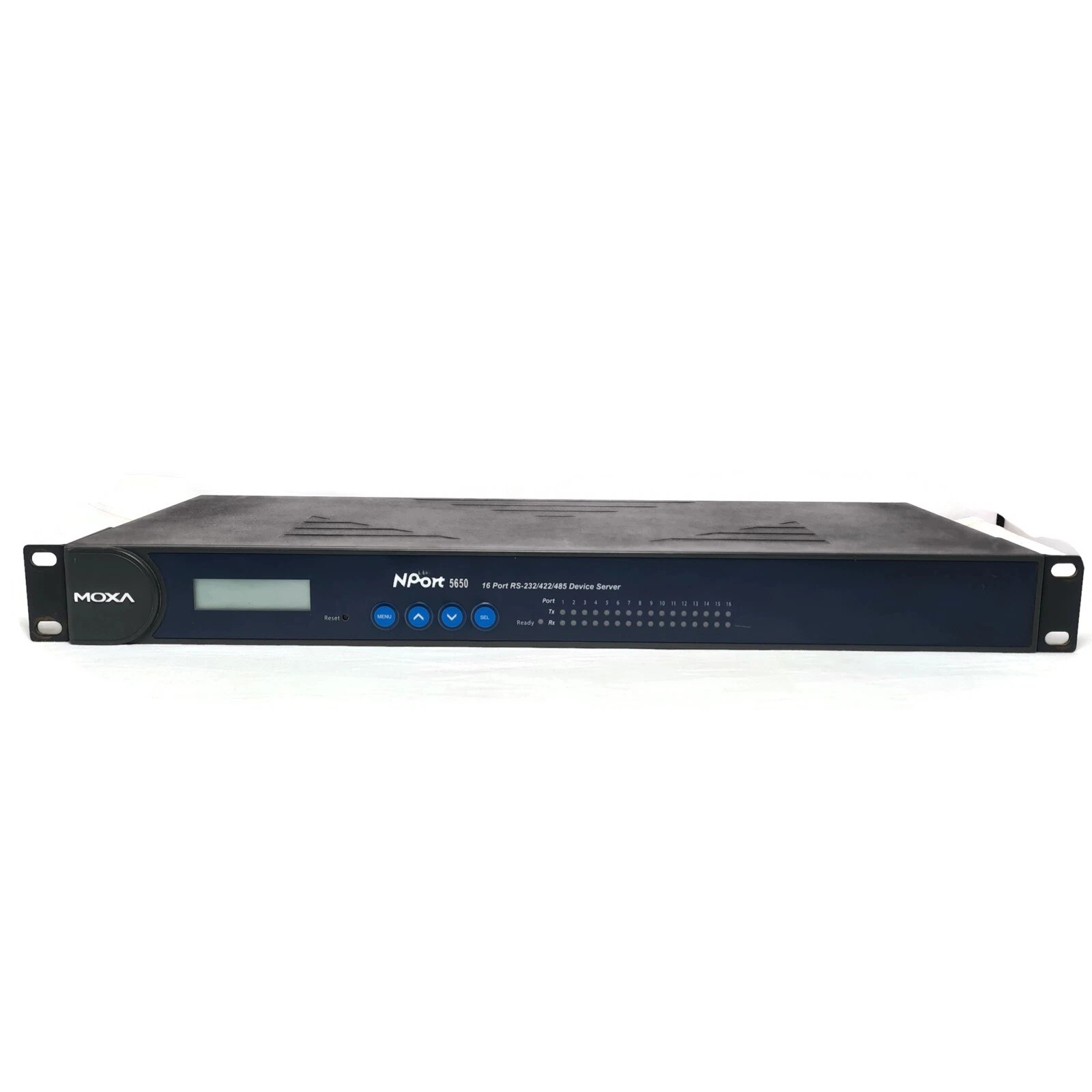

Moxa NPort 5650-16 Serial Device Server
Moxa NPort 5650-16 Serial Device Server allows seamless integration of multiple serial devices into Ethernet networks. With 16 serial ports, it ensures stable, reliable communication for industrial automation. Available at the best prices in Bangladesh from Moxa Bangladesh, it’s the ideal solution for efficient serial-to-Ethernet connectivity.
Specification Table
| Feature | Details |
|---|---|
| Model | Moxa NPort 5650-16 |
| Device Type | Serial Device Server |
| Serial Ports | 16 x RS-232/422/485 (selectable) |
| Ethernet Port | 1 x 10/100 Mbps RJ45 |
| Serial Communication Speed | RS-232/422/485: up to 921.6 kbps |
| Flow Control | RTS/CTS, XON/XOFF |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422/485: Differential signal pairs |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS, SNMP |
| Operation Modes | Real COM mode, TCP Server/Client, UDP, RFC2217 |
| Power Input | 12–48 VDC |
| Power Consumption | 12 W (typical) |
| Dimensions | 442 x 132 x 44 mm (19-inch, 1U rack-mountable) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -20 to 75 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | Rack-mount, wall-mount options |
Description:
The Moxa NPort 5650-16 is a high-performance industrial serial device server designed to connect multiple serial devices to an Ethernet network efficiently. With 16 configurable RS-232/422/485 serial ports, it allows seamless integration of legacy serial devices into modern network infrastructures. Each port supports data rates up to 921.6 kbps, ensuring reliable and fast serial communication for industrial automation, manufacturing, and monitoring systems.
Equipped with one 10/100 Mbps Ethernet port, the NPort 5650-16 supports various operation modes including Real COM, TCP Server/Client, UDP, and RFC2217, providing flexibility for different application requirements. It also supports essential network protocols like DHCP, DNS, HTTP, and SNMP, simplifying device management and remote monitoring. Its compact 1U rack-mountable design, coupled with wide-range DC power input, makes it ideal for industrial control rooms and network cabinets.
The device is built to operate reliably under harsh conditions, with an operating temperature range of 0–60 °C and high humidity tolerance. Robust serial flow control, comprehensive signaling support, and redundant network management capabilities make the NPort 5650-16 a dependable solution for connecting serial devices to modern Ethernet networks, ensuring efficient, stable, and scalable industrial communication.
Key Features
16-port serial device server supporting RS-232/422/485 interfaces.
High-speed Ethernet connectivity for reliable data transmission.
Wide operating temperature range suitable for industrial environments.
Secure data transmission with advanced network security features.
Flexible configuration via web console, Windows utility, or command line.
Supports multiple operating modes such as TCP Server, TCP Client, UDP, and Real COM mode.
Robust housing for harsh industrial conditions.
Where it Can Be Used
Factory automation systems for connecting multiple serial devices to Ethernet networks.
Energy management systems for remote monitoring and control of devices.
Transportation systems for serial device integration in traffic control and signaling.
Industrial machinery for reliable serial-to-Ethernet conversion.
SCADA and remote data acquisition applications where multiple serial devices must be networked.
Installation Step
Mount the device in a DIN rail or secure it on a flat surface.
Connect serial devices (RS-232/422/485) to the 16 serial ports.
Connect Ethernet cable to your network.
Power on the device using the provided DC power supply.
Configure the device using the NPort Administrator tool or web console.
Test connections by sending and receiving data from connected serial devices.
User Experience
Users report that the NPort 5650-16 is reliable and easy to configure, even for large-scale deployments. Its robust performance in industrial conditions ensures minimal downtime. The Real COM mode allows legacy software to communicate with serial devices seamlessly over Ethernet. Overall, it simplifies network integration for multiple serial devices, improving efficiency in industrial and automation applications.
What is the price of Moxa NPort 5650-16 Serial Device Server in Bangladesh?
The estimated price of Moxa NPort 5650-16 Serial Device Server in Bangladesh is 0৳. You can buy the Moxa NPort 5650-16 Serial Device Server at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
