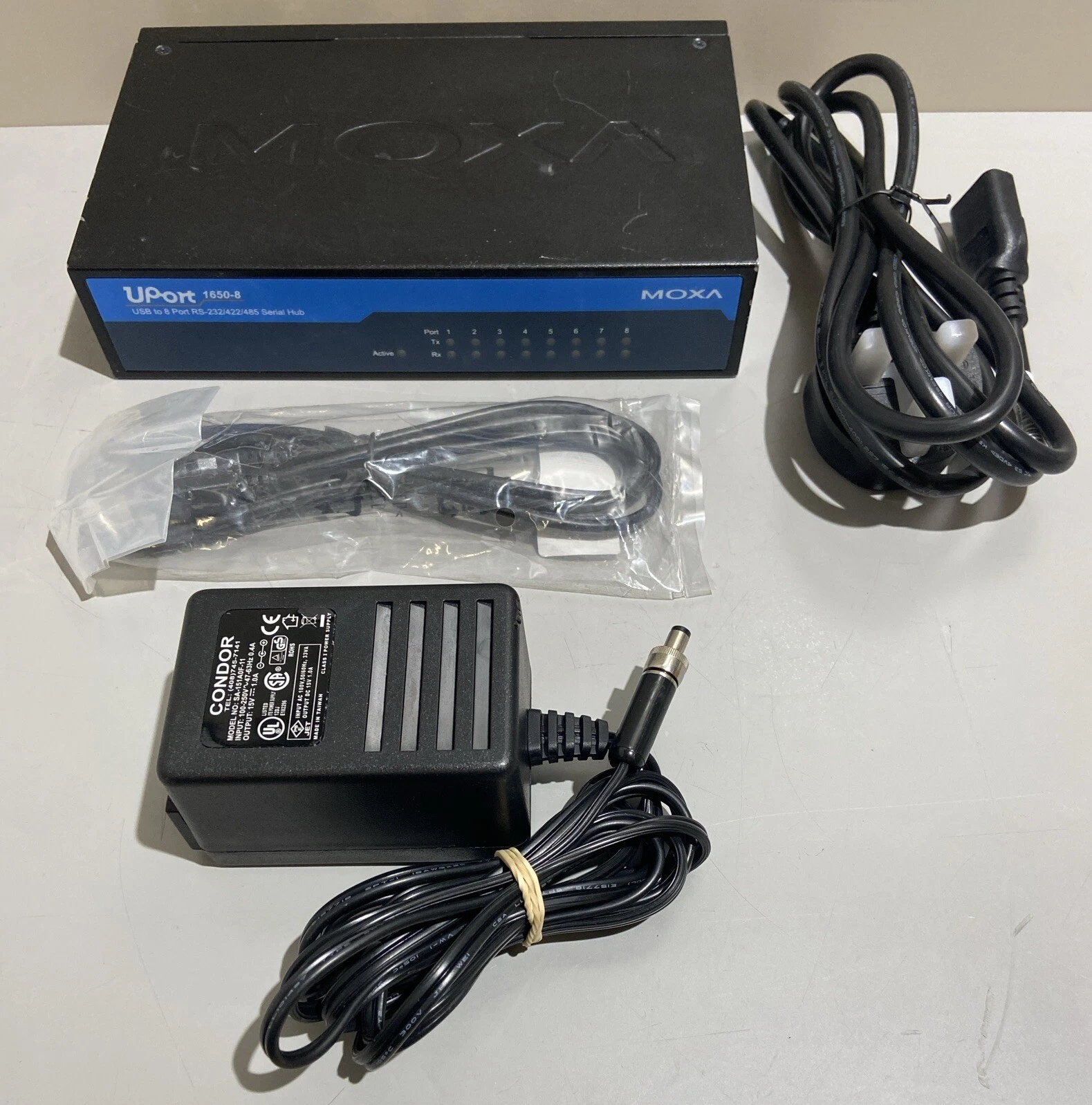

Moxa UPort 1650-8 USB to 8 Port RS-232/422/485 Serial Hub
The Moxa UPort 1650-8 USB to Serial Hub provides seamless connectivity with 8 RS-232/422/485 serial ports for industrial communication needs. Designed for reliability, it ensures stable data transfer in automation and monitoring applications. Ideal for factories, industrial systems, and control panels across Bangladesh.
Specification Table
| Feature | Details |
|---|---|
| Model | Moxa UPort 1650-8 |
| Type | USB to Serial Hub |
| Serial Ports | 8 Ports |
| Supported Standards | RS-232, RS-422, RS-485 |
| USB Interface | USB 2.0 |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baud Rate | Up to 921.6 kbps |
| Operating System Support | Windows, Linux |
| Isolation | 2 kV (optional model-dependent) |
| LED Indicators | Power, Tx/Rx |
| Power Supply | USB bus-powered (no external power needed) |
| Dimensions | 176 x 120 x 35 mm |
| Weight | 780 g |
| Mounting | DIN-Rail or Wall Mountable |
| Environmental Limits | Operating Temp: 0–55°C, Storage Temp: -20–85°C, Humidity: 5–95% RH (non-condensing) |
| Certifications | CE, FCC, UL |
Moxa UPort 1650-8 Description:
The Moxa UPort 1650-8 is a high-performance USB-to-serial hub designed to expand your USB port into eight independent RS-232/422/485 serial ports. It is ideal for industrial automation, retail, transportation, and networking environments where multiple serial devices need to be connected to a single PC or server. The hub supports multiple serial communication standards, providing flexibility for a wide range of devices including PLCs, sensors, barcode scanners, and industrial controllers.
Equipped with USB 2.0 connectivity, the UPort 1650-8 delivers fast and reliable data transfer up to 921.6 kbps per port. Each port features full support for data bits, parity, stop bits, and flow control, ensuring seamless communication even in complex industrial applications. The device is easy to install with plug-and-play functionality and is compatible with both Windows and Linux operating systems.
The UPort 1650-8 is built with durability in mind, offering robust power supply through USB bus power, DIN-Rail or wall mounting options, and an industrial-grade operating temperature range. LED indicators provide clear status of power and data transmission, simplifying monitoring and maintenance. Its compact, lightweight design and multiple certifications make it a reliable solution for expanding serial connectivity in demanding environments.
Key Features
- Converts a single USB port into 8 serial ports (RS-232/422/485).
- Supports high-speed data transfer with USB 2.0 compliance.
- Wide operating system compatibility including Windows, Linux, and macOS.
- Includes advanced driver features such as event logging, serial signal control, and flexible COM port assignment.
- Provides reliable industrial-grade performance with surge and ESD protection.
Where it Can Be Used
- Ideal for industrial automation systems where multiple serial devices need to connect to a single PC.
- Suitable for data acquisition, factory automation, and process control applications.
- Can be used in logistics, POS systems, and laboratory equipment requiring multiple serial connections.
Installation Step
- Connect the UPort 1650-8 to the PC using the USB cable.
- Install the provided drivers on your computer.
- Connect your serial devices to the appropriate ports (RS-232/422/485).
- Assign COM ports as needed via the driver interface.
- Test each connection to ensure proper communication.
User Experience
Users report stable and consistent communication across all 8 ports. The device is plug-and-play with most operating systems, simplifying deployment. The industrial-grade design ensures long-term reliability even in harsh environments. Users appreciate the compact form factor and flexibility in handling multiple serial devices simultaneously.
Get in Touch with Moxa Bangladesh Industrial
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Moxa UPort 1650-8 USB to 8 Port RS-232/422/485 Serial Hub in Bangladesh?
The estimated price of Moxa UPort 1650-8 USB to 8 Port RS-232/422/485 Serial Hub in Bangladesh is 0৳. You can buy the Moxa UPort 1650-8 USB to 8 Port RS-232/422/485 Serial Hub at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
