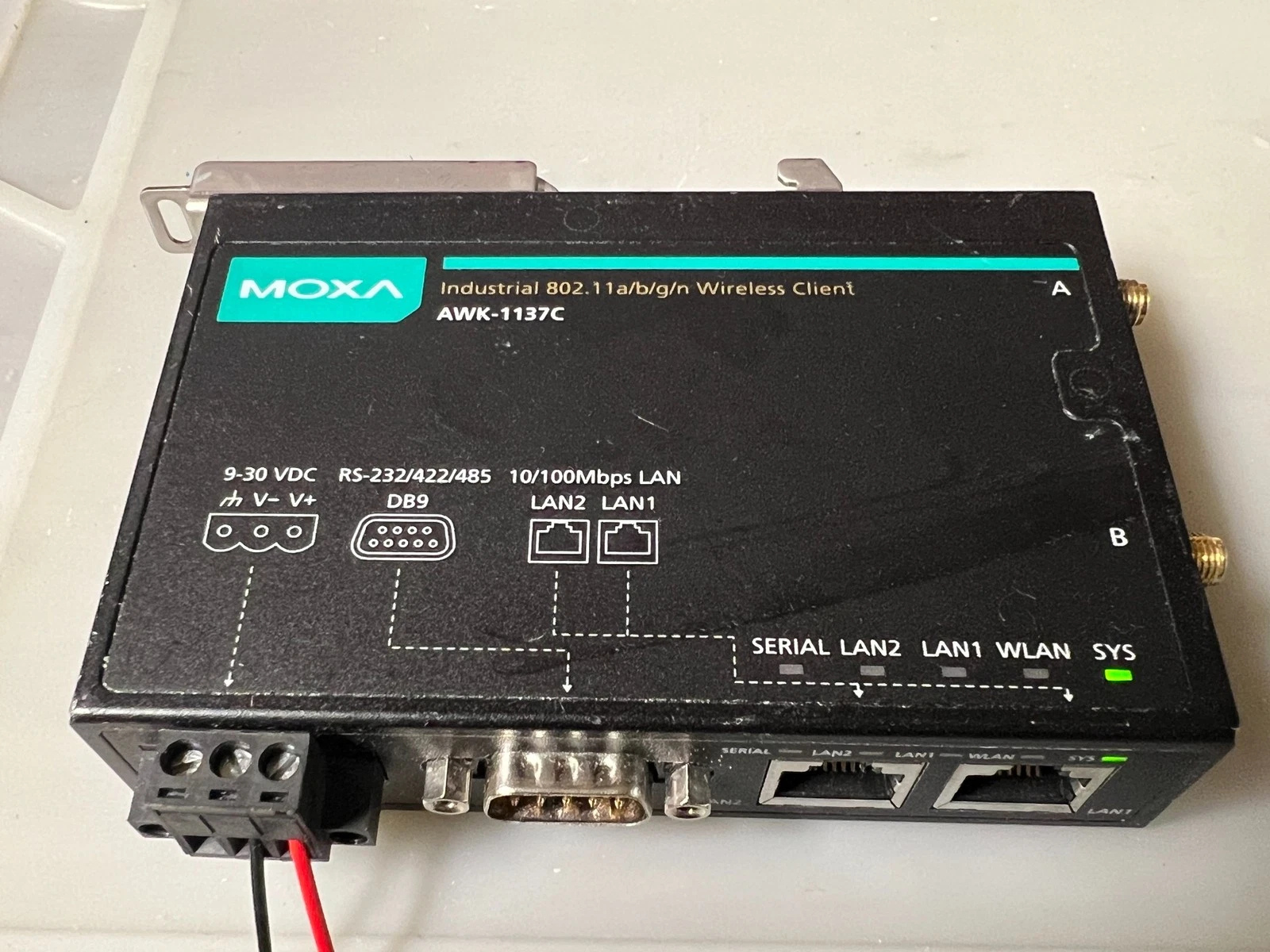

Moxa AWK-1137C Industrial Wireless Device
The Moxa AWK-1137C Industrial Wireless Device delivers reliable and high-performance wireless connectivity for industrial environments. Designed to withstand harsh conditions, it ensures uninterrupted network access for automation and control systems. Available at the best price in Bangladesh, this device is ideal for industrial networking solutions.
Specification Table
| Feature | Details |
|---|---|
| Model | AWK-1137C |
| Wi-Fi Standards | IEEE 802.11a/b/g/n |
| Frequency Bands | 2.4 GHz (2.412–2.462 GHz), 5 GHz (5.180–5.320 GHz) |
| MIMO Technology | 2×2 MIMO (Multiple Input Multiple Output) |
| Data Rate | Up to 300 Mbps (802.11n) |
| Security Protocols | WPA2-PSK, WPA2-Enterprise (802.1X/RADIUS, TKIP, AES) |
| Ethernet Ports | 2 x 10/100BaseT(X) RJ45 |
| Serial Port | 1 x RS-232/422/485 DB9 connector |
| Power Input | +9V to +30V DC |
| Operating Temperature | -40°C to +75°C (wide-temperature model) or 0°C to +60°C (standard model) |
| Certifications | CE, FCC, UL, E1, cULus |
| Dimensions | 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in) |
| Weight | 470 g (1.04 lbs) |
| Mounting Options | DIN-rail or wall mounting (with optional kit) |
| Housing | Metal, IP30 rated |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Antenna | 2 x 2.4/5 GHz omni-directional antennas (RP-SMA connectors) |
| LED Indicators | SYS, WLAN, LAN1, LAN2, SERIAL |
| Management Tools | AeroMag for setup, MXview for network management |
Description
The Moxa AWK-1137C is a compact and rugged industrial wireless client designed to provide reliable Wi-Fi connectivity for Ethernet and serial devices in demanding environments. Compliant with IEEE 802.11a/b/g/n standards, it supports both 2.4 GHz and 5 GHz frequency bands, ensuring compatibility with existing wireless infrastructures.
Equipped with 2×2 MIMO technology, the AWK-1137C delivers data rates up to 300 Mbps, facilitating fast and stable wireless communication. Its millisecond-level Turbo Roaming feature ensures seamless handoff between access points, making it ideal for mobile applications such as automated guided vehicles (AGVs) and shuttle systems.
The device offers versatile connectivity options, including two 10/100BaseT(X) Ethernet ports and one RS-232/422/485 serial port, allowing integration with a wide range of industrial equipment. Power input ranges from +9V to +30V DC, accommodating various power sources.
Designed for harsh industrial environments, the AWK-1137C boasts a wide operating temperature range of -40°C to +75°C (wide-temperature model) and is resistant to vibration per IEC 60068-2-6 standards. Its IP30-rated metal housing provides durability and protection against environmental factors.
Installation is simplified with AeroMag technology for error-free setup, while MXview network management software offers comprehensive monitoring and visualization of wireless connections. The AWK-1137C is an ideal solution for integrating wireless connectivity into industrial machinery, enhancing operational efficiency and flexibility.
Key Features
- Dual Radio Operation: Supports simultaneous AP and client modes for flexible wireless networking.
- High-Speed Connectivity: IEEE 802.11a/b/g/n standards ensure reliable and fast wireless transmission.
- Rugged Design: Industrial-grade construction capable of operating in extreme temperatures (-40°C to 75°C).
- Security: Advanced encryption protocols (WPA2, WPA3) protect network data from unauthorized access.
- Multiple Operation Modes: Functions as access point, client, or bridge for versatile deployment.
- LED Indicators: Clear status indicators for easy network monitoring and troubleshooting.
- Power Options: Supports PoE and DC power inputs for flexible installation in remote areas.
Where it Can Be Used
- Factories and Industrial Plants: Ensures uninterrupted wireless communication in harsh industrial environments.
- Transportation Systems: Supports wireless connectivity for trains, buses, and other transit systems.
- Remote Monitoring: Ideal for connecting sensors, cameras, and devices in outdoor or hard-to-reach areas.
- Warehouses: Reliable Wi-Fi for logistics, inventory tracking, and automated systems.
- Energy and Utilities: Enables secure wireless networks for power plants, oil & gas, and water treatment facilities.
Installation Step
- Mounting: Attach the device to a DIN rail or wall using included brackets.
- Power Connection: Connect using either PoE or DC power source.
- Antenna Setup: Install external antennas for optimal signal coverage.
- Network Configuration: Access the web console or use Moxa software to configure IP settings, SSID, and security parameters.
- Testing: Verify connectivity by checking LED status and testing wireless links with client devices.
What is the price of Moxa AWK-1137C Industrial Wireless Device in Bangladesh?
The estimated price of Moxa AWK-1137C Industrial Wireless Device in Bangladesh is 32,500৳. You can buy the Moxa AWK-1137C Industrial Wireless Device at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
