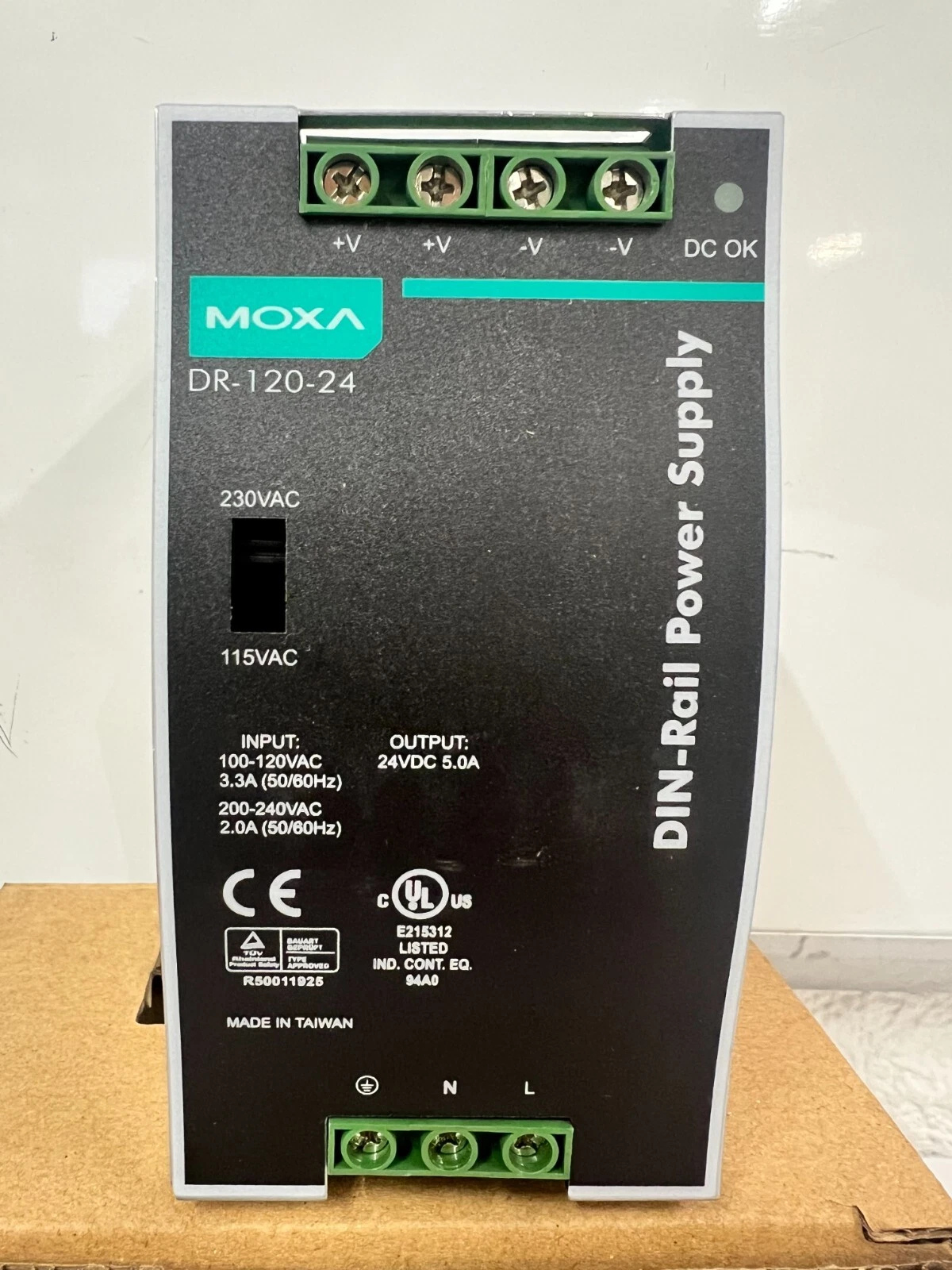

MOXA DR-120-24 DIN-Rail Power Supply
The MOXA DR-120-24 DIN-Rail Power Supply delivers reliable 24V DC output with 120W power for industrial applications. Featuring high efficiency up to 92% and robust protections against overvoltage, overcurrent, and short circuits. Ideal for harsh environments in Bangladesh, ensuring stable performance in extreme temperatures.
Specification Table
| Feature | Details |
|---|---|
| Model | MOXA DR-120-24 |
| Type | DIN-Rail Power Supply |
| Input Voltage | 85–264 VAC, 120–370 VDC |
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Power Output | 120 W |
| Efficiency | Up to 92% |
| Protection | Overvoltage, Overcurrent, Short Circuit |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions (W x H x D) | 60 x 125 x 115 mm |
| Mounting | DIN-Rail |
| Certification | UL 60950-1, CE, FCC |
Description:
The MOXA DR-120-24 is a high-performance DIN-Rail power supply designed for industrial automation and network applications. Delivering a stable 24V DC output at 5A, it provides reliable power for industrial devices, controllers, and communication equipment. Its wide input voltage range of 85–264 VAC or 120–370 VDC allows it to function seamlessly in diverse power environments, ensuring adaptability for global applications.
Engineered for efficiency, the DR-120-24 achieves up to 92% power efficiency, minimizing energy loss and reducing heat generation. Built-in protection mechanisms guard against overvoltage, overcurrent, and short circuits, enhancing the safety and longevity of connected equipment. The device can operate in extreme temperatures from -25°C to 70°C and can withstand storage temperatures up to 85°C, making it suitable for harsh industrial conditions.
Compact and robust, the DR-120-24 is easily mounted on standard DIN rails, saving space while maintaining ease of installation and maintenance. Its compliance with international safety and EMC standards such as UL, CE, and FCC ensures reliable operation in industrial environments. Ideal for powering network switches, industrial controllers, and communication modules, the MOXA DR-120-24 combines efficiency, durability, and safety to meet the demands of modern industrial systems.
Key Features
Input Voltage Range: 85–264 VAC / 120–370 VDC
Output Voltage: 24 VDC
Output Current: 5 A
Power Capacity: 120 W
Efficiency: Up to 89%
DIN-Rail Mountable: Compact design for easy industrial installation
Protection: Overload, overvoltage, short-circuit protection
Operating Temperature: -25°C to 70°C
Certifications: CE, UL, CB
Where it Can Be Used?
The MOXA DR-120-24 is ideal for industrial and automation applications. Typical use cases include:
Factory Automation: Powering PLCs, sensors, and controllers
Transportation Systems: Supporting railway signaling and control devices
Energy Management: Powering devices in solar or wind energy systems
Industrial Networks: Reliable power for network switches, modems, and communication devices
Installation Step
Mounting: Secure the DR-120-24 on a standard DIN rail inside the control panel.
Wiring Input: Connect the AC or DC input wires according to the voltage range specification.
Wiring Output: Connect the 24 VDC output terminals to the load devices.
Power On: Turn on the input power and verify that the green LED indicator lights up.
Testing: Check output voltage with a multimeter to ensure proper operation.
Buy MOXA DR-120-24 DIN-Rail Power Supply at the Best Price from Moxa Bangladesh.
In Bangladesh, you can get MOXA DR-120-24 DIN-Rail Power Supply From Moxa Bangladesh. We have a large collection of latest Moxa Accessories to purchase for your System. Order Online Or Visit our Office to get yours at lowest price. The MOXA DR-120-24 Power Supply comes with 1 Year warranty.
Get in Touch with Moxa Bangladesh
Call/WhatsApp: 01748173213
✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of MOXA DR-120-24 DIN-Rail Power Supply in Bangladesh?
The estimated price of MOXA DR-120-24 DIN-Rail Power Supply in Bangladesh is 0৳. You can buy the MOXA DR-120-24 DIN-Rail PSU at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
