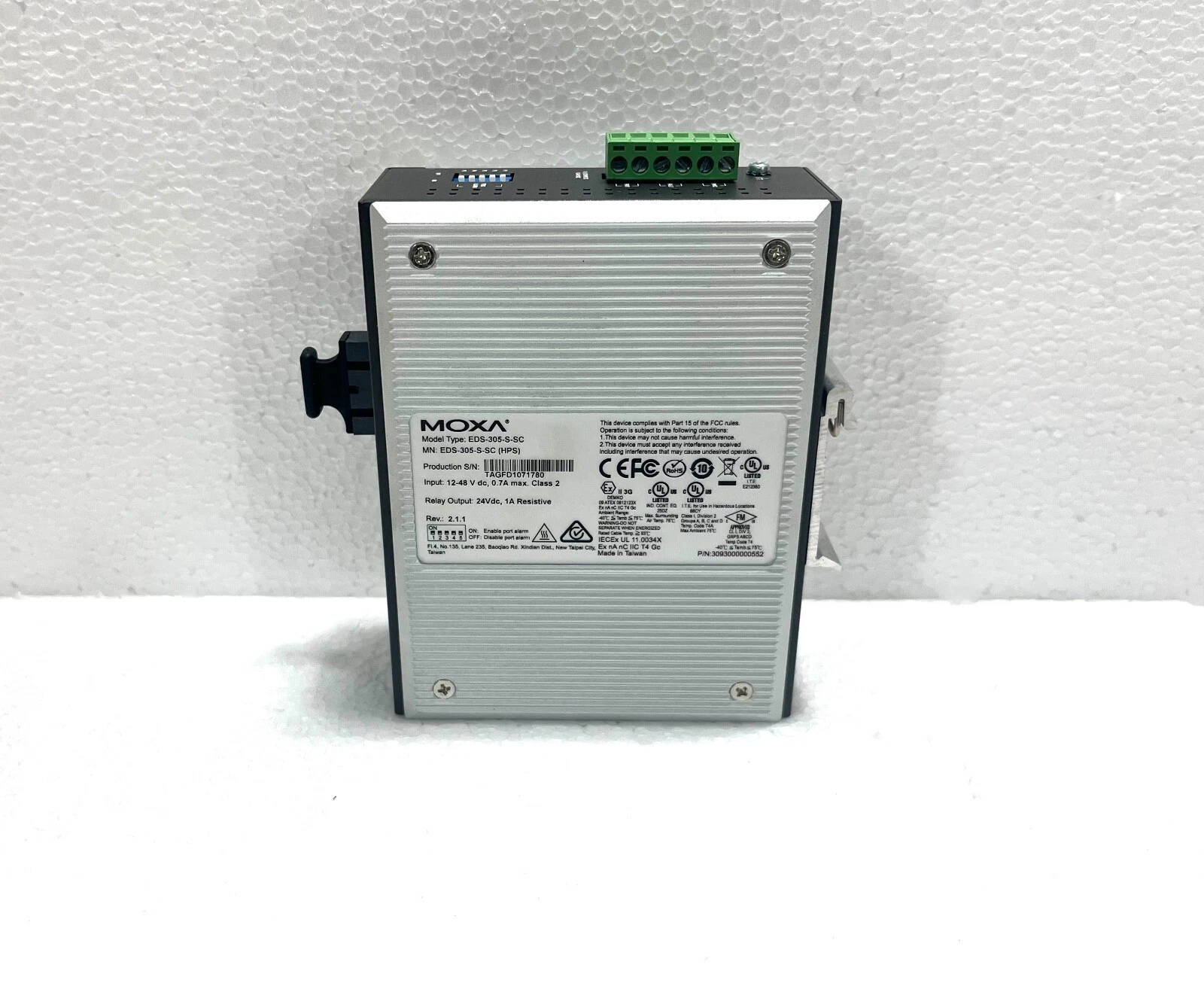

Moxa EDS-305-S-SC HPS Ether Device Switch
The Moxa EDS-305-S-SC HPS Ether Device Switch is a rugged and compact industrial switch, designed for high-performance Ethernet networks. It ensures reliable data communication with its SC fiber connector and robust build quality. Available at the best price in BD, it is perfect for industrial automation and networking applications in Bangladesh.
Specification Table
| Specification | Details |
|---|---|
| Model | Moxa EDS-305-S-SC HPS |
| Type | Unmanaged Industrial Ethernet Switch |
| Ports | 5 x 10/100 Mbps Fast Ethernet ports |
| Fiber Ports | 1 x SC multimode fiber port |
| Redundant Power Inputs | 12–48 VDC or 24 VAC |
| Power Consumption | Max. 4.2 W |
| Switching Capacity | 1 Gbps |
| MTBF (Mean Time Between Failures) | 1,000,000 hours |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Housing | Rugged metal housing, DIN-rail mountable |
| Protection Class | IP30 |
| Certifications | CE, FCC, UL |
| Dimensions (W x H x D) | 36 x 80 x 95 mm |
| Weight | 0.35 kg |
| Features | Redundant power, wide temperature range, fiber uplink, surge protection |
Description:
The Moxa EDS-305-S-SC HPS is a robust, unmanaged industrial Ethernet switch designed for reliable and high-performance network communication in harsh environments. With 5 Fast Ethernet ports and a dedicated SC fiber port, it offers seamless integration for both copper and fiber networks, making it ideal for industrial automation, factory monitoring, and transportation applications.
Its compact and rugged IP30-rated metal housing ensures durability, while the DIN-rail mounting allows flexible installation in control cabinets or tight spaces. The switch supports a wide operating temperature range from -10°C to 60°C, enabling it to function efficiently even in extreme conditions. Redundant power inputs and low power consumption enhance reliability, minimizing downtime due to power failures.
The EDS-305-S-SC HPS provides fast data transmission with a switching capacity of 1 Gbps and features surge protection to safeguard against voltage spikes. Its high MTBF of 1,000,000 hours underscores long-term dependability. Designed for plug-and-play operation, this unmanaged switch requires no configuration, making it user-friendly for industrial deployments. Its compliance with CE, FCC, and UL standards ensures safety and quality in demanding industrial environments. Overall, it is a durable and reliable solution for extending network connectivity in industrial settings.
Key Features
- Compact Industrial Design: Rugged DIN-rail mountable switch for harsh environments.
- Ports: 5-port 10/100 Mbps Ethernet switch with SC fiber port for extended distance communication.
- High Performance: Supports high-speed data transfer with low latency.
- Reliability: Industrial-grade components with high surge and ESD protection.
- Easy Management: Plug-and-play operation; no complex configuration required.
- Wide Operating Temperature: Can operate in temperatures from -10°C to 60°C.
- HPS Technology: Supports Hot Swap functionality for fiber modules without downtime.
Where it Can Be Used?
- Industrial Automation: Ideal for factory automation, process control, and manufacturing lines.
- Transportation Systems: Suitable for railway, traffic monitoring, and intelligent transport systems.
- Energy & Utilities: Used in power plants, substations, and renewable energy systems.
- Surveillance Systems: Reliable for connecting IP cameras over long distances using fiber.
- Harsh Environments: Works efficiently in environments with vibration, dust, or extreme temperatures.
Installation Step
- Mounting: Secure the switch on a DIN rail.
- Power Connection: Connect the DC power input (12–48V DC).
- Network Cabling: Plug in Ethernet devices into RJ45 ports; insert SC fiber modules as needed.
- Check Indicators: Verify LED indicators for power, link status, and activity.
- Start Operation: The switch is plug-and-play, requiring no further configuration.
User Experience
Users report that the Moxa EDS-305-S-SC is highly reliable in industrial environments. Its compact design allows easy integration in crowded control cabinets. The SC fiber support enables long-distance networking without performance loss. Many users highlight the ease of installation, robust build quality, and consistent performance even in high-temperature or high-vibration conditions. The Hot Swap functionality ensures network uptime during maintenance, which is crucial for mission-critical applications.
Get in Touch with Moxa Bangladesh Industrial
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Moxa EDS-305-S-SC HPS Ether Device Switch in Bangladesh?
The estimated price of Moxa EDS-305-S-SC HPS Ether Device Switch in Bangladesh is 0৳. You can buy the Moxa EDS-305-S-SC HPS Ether Device Switch at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
