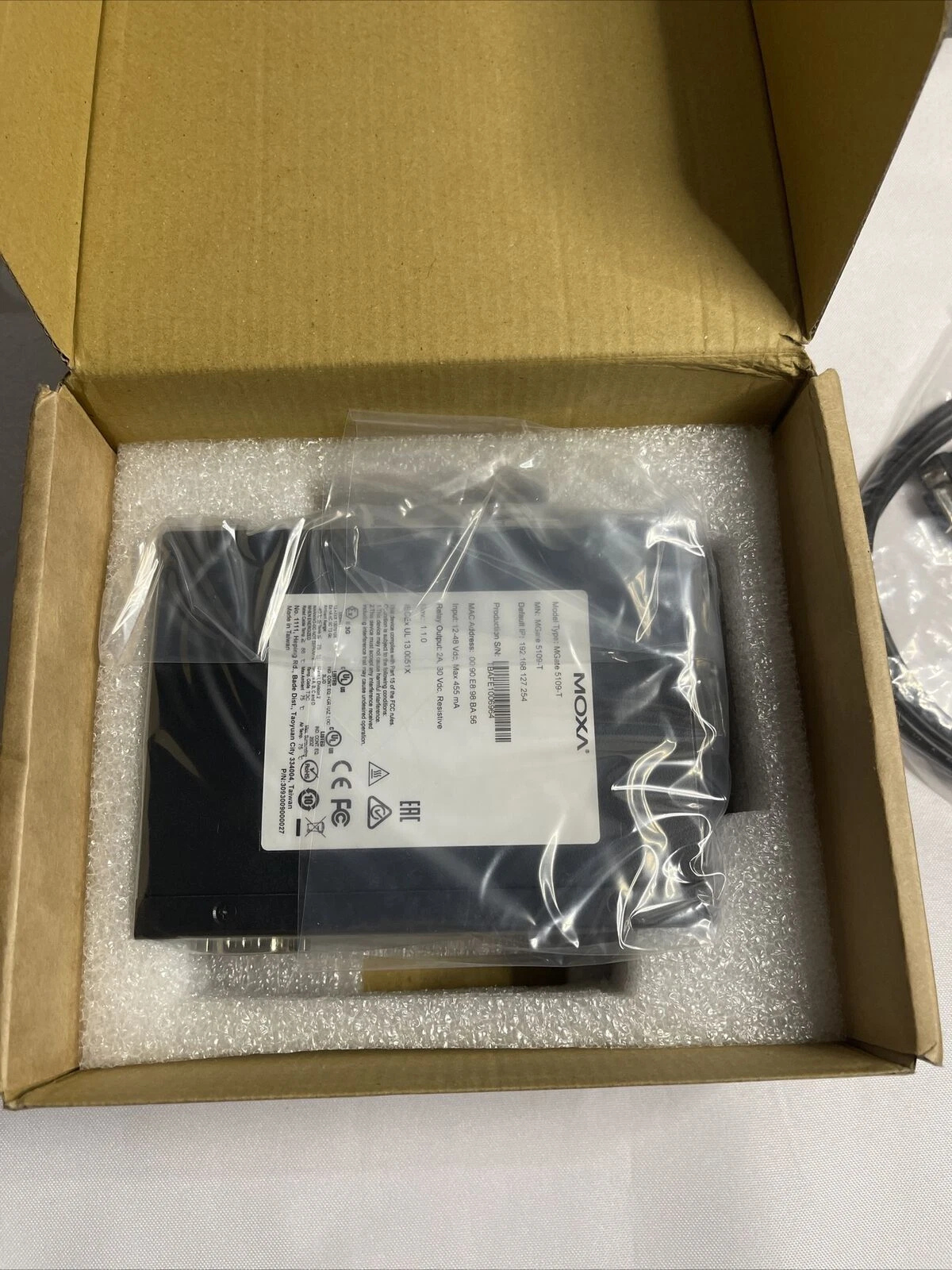

MOXA MGate 5109-T Industrial Ethernet Gateway
The MOXA MGate 5109-T Industrial Ethernet Gateway is designed for seamless industrial network communication. It provides reliable serial-to-Ethernet connectivity for various industrial devices. Available at the best price in BD, it’s the perfect solution for industrial automation and network integration in Bangladesh.
Specification Table
| Feature | Specification |
|---|---|
| Protocol Conversion | Modbus RTU/ASCII/TCP ↔ DNP3 serial/TCP/UDP |
| Operating Temperature | -40 to 75°C |
| Ethernet Ports | 2 × 10/100BaseT(X) (RJ45), Auto MDI/MDI-X |
| Serial Ports | 1 × RS-232/422/485 (DB9 male), 2 kV isolation protection |
| Power Input | Dual DC 12–48 V (redundant), screw-fastened Euroblock terminal |
| Relay Output | 1 × Fault relay output |
| Security | SNMPv1/v2c/v3, HTTPS (TLS 1.3), AES-128/256, SHA-256 |
| Management Protocols | ARP, DHCP Client, DNS, HTTP/HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| Configuration Interface | Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console |
| MicroSD Slot | Yes, up to 32 GB (SD 2.0 compatible) |
| Dimensions (W × H × D) | 36 × 105 × 140 mm |
| Certifications | ATEX, IECEx, UL Listed, CE, Class I Division 2, IEC 62443 |
| Protection Ratings | ESD: Contact 8 kV, Air 15 kV; Surge: Power 2 kV, Signal 2 kV; EFT: Power 4 kV, Signal 2 kV; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30 |
| Mounting | DIN-rail mountable |
| Casing | IP30-rated metal body design |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Baud Rate | 50 bps to 921.6 kbps |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| RS-485 Signals | Data+, Data-, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| MTBF | 888,926 hours |
Product Description
The MOXA MGate 5109-T is a robust industrial Ethernet gateway designed to facilitate seamless protocol conversion between Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP. Engineered for critical infrastructure applications in sectors such as power, water, oil & gas, and utilities, it ensures reliable communication across diverse industrial networks.
This gateway supports both transparent and agent modes. In transparent mode, it enables straightforward bridging between Modbus TCP and Modbus RTU/ASCII or DNP3 TCP/UDP and DNP3 serial networks. In agent mode, it acts as a data concentrator, managing multiple Modbus slaves or DNP3 outstations, thereby simplifying complex network architectures.
The MGate 5109-T is built to withstand harsh industrial environments, featuring a rugged metal housing and a wide operating temperature range of -40 to 75°C. It offers dual redundant DC power inputs (12–48 VDC) and includes a relay output for fault notifications, ensuring continuous operation even in the event of power disruptions.
For configuration and maintenance, the device provides a web-based console, Telnet access, and supports secure communication protocols like HTTPS and SSH. Additionally, it includes a microSD card slot for configuration backup and event logging, facilitating easy deployment and troubleshooting.
Key Features:
- Reliable Modbus-to-Ethernet gateway for industrial networks
- Supports multiple protocols including Modbus RTU/ASCII/TCP
- High-speed data transmission and low latency
- Robust industrial-grade design with wide temperature support
Where it Can Be Used:
- Factory automation systems
- Industrial control networks
- Energy management systems
- Process monitoring and data acquisition setups
Installation Step:
- Mount the gateway on a DIN rail or flat surface.
- Connect the power supply according to the specifications.
- Link Ethernet and serial devices to the respective ports.
- Configure IP addresses and protocol settings via the web console or MGate software.
- Test communication between devices to ensure proper data flow.
User Experience:
Intuitive setup with minimal configuration time
Stable performance in harsh industrial environments
Seamless integration with existing Modbus and Ethernet devices
Reduces network downtime and improves system reliability
What is the price of MOXA MGate 5109-T Industrial Ethernet Gateway in Bangladesh?
The estimated price of MOXA MGate 5109-T Industrial Ethernet Gateway in Bangladesh is 0৳. You can buy the MOXA MGate 5109-T Industrial Ethernet Gateway at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
