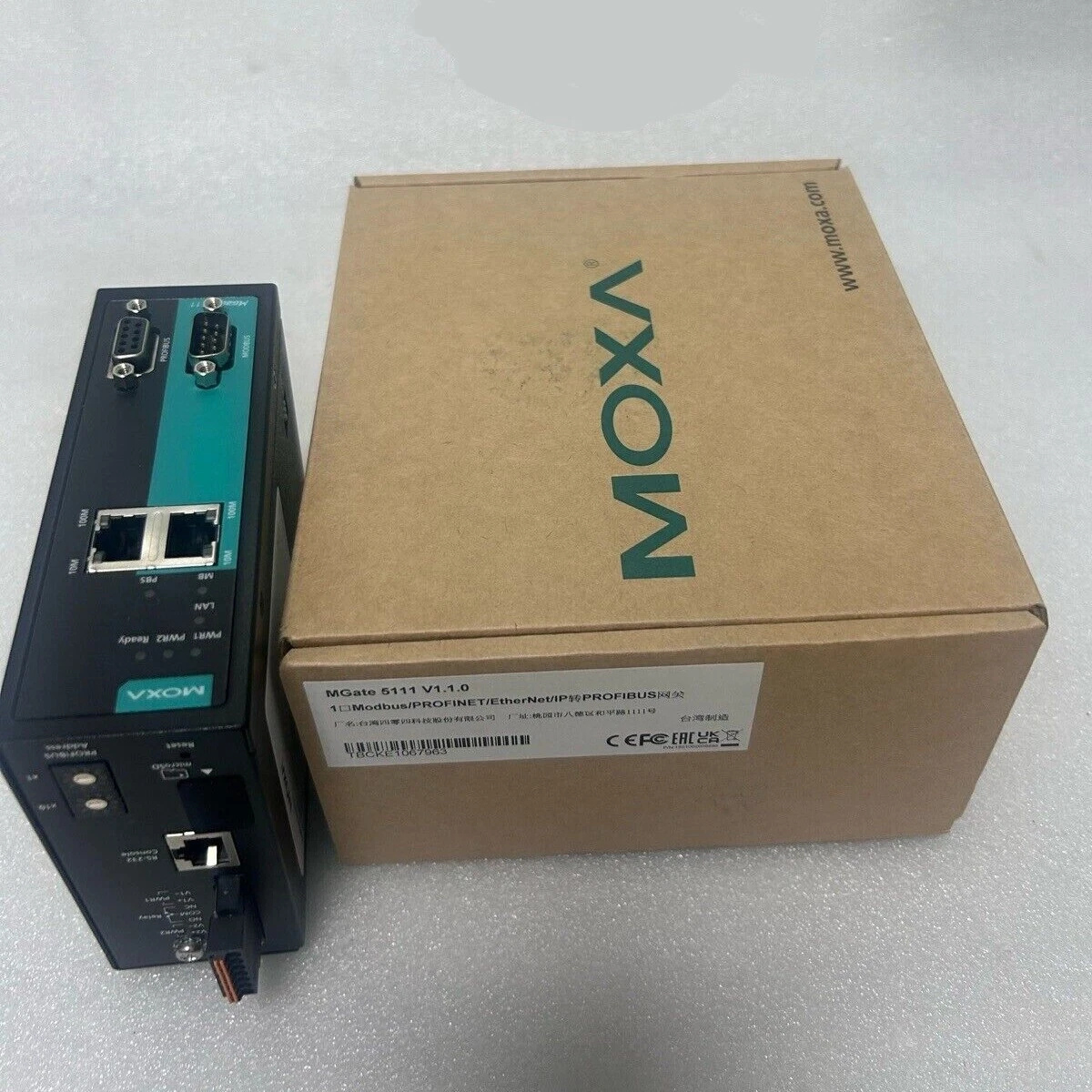

MOXA MGate5111-T Modbus Gateway
The MOXA MGate5111-T Modbus Gateway is an industrial-grade solution for seamless Modbus communication between devices. It ensures reliable and stable data transfer across networks. Available at the best Price in BD, it is perfect for industrial automation applications in Bangladesh.
Specification Table
| Feature | Specification |
|---|---|
| Model | MGate 5111-T |
| Protocol Support | Modbus RTU/ASCII to Modbus TCP |
| Serial Ports | 1 x RS-232/422/485 port |
| Serial Baud Rate | 300 bps to 115.2 kbps |
| Serial Data Bits | 7 or 8 |
| Serial Stop Bits | 1 or 2 |
| Serial Parity | None, Even, Odd |
| Ethernet Ports | 1 x 10/100 Mbps RJ45 |
| Ethernet Protocols | TCP/IP, UDP, ICMP, DHCP, HTTP, Modbus TCP |
| Isolation | 2 kV isolation between serial, Ethernet, and power |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Power Input | 12–48 VDC |
| Mounting | DIN-rail mounting |
| Dimensions | 30 x 70 x 90 mm (approx.) |
| Indicators | Power, Ethernet, Serial Tx/Rx LEDs |
| Certification | CE, UL |
Description:
The MOXA MGate 5111-T is a compact and reliable industrial gateway designed to bridge communication between Modbus RTU/ASCII serial devices and Modbus TCP networks. It enables seamless integration of legacy serial devices into modern Ethernet-based automation systems, eliminating the need to replace existing equipment. With a single RS-232/422/485 port, the MGate 5111-T supports multiple baud rates and flexible serial communication settings, ensuring compatibility with a wide range of industrial controllers and sensors.
Equipped with a 10/100 Mbps Ethernet port, the gateway allows devices on the factory floor to communicate with SCADA systems, PLCs, and HMIs over Modbus TCP networks efficiently. Its robust 2 kV isolation protects devices against electrical surges and ground loop issues, enhancing system reliability in harsh industrial environments. The gateway supports DIN-rail mounting for easy installation in control cabinets and features clear LED indicators for monitoring power, serial communication, and Ethernet activity.
Designed for operational temperatures ranging from 0°C to 60°C, the MGate 5111-T is suitable for most industrial automation settings. It is widely used in energy management, factory automation, and process control applications, offering a cost-effective solution for bridging legacy devices with modern network infrastructures. Its compliance with CE and UL standards ensures safety and reliability in industrial deployments.
Key Features
- Protocol Conversion: Supports Modbus RTU/ASCII/TCP, EtherNet/IP, PROFINET, and PROFIBUS DP V0 slave, enabling integration between different industrial protocols.
- Connectivity: Equipped with 2 x 10/100BaseT(X) Ethernet ports (RJ45) and 1 x RS-232/422/485 serial port for flexible network connections.
- Power Input: Accepts 12 to 48 VDC input, ensuring compatibility with various power sources.
- Operating Temperature: Designed to operate in harsh environments with a wide temperature range of -40 to 75°C.
- Redundancy and Protection: Features redundant dual DC power inputs and 1 relay output for fault alarm, enhancing system reliability.
- Diagnostics and Monitoring: Includes built-in traffic monitoring, protocol diagnostics, and status monitoring to facilitate troubleshooting and maintenance.
- Security: Complies with IEC-62443 security standards, ensuring secure communication in industrial networks.
- Certifications: Certified for hazardous locations (ATEX, Class I Division 2, IECEx), vibration, shock, free-fall, safety, and EMC compliance.
Where It Can Be Used
The MGate 5111-T is ideal for applications in industries such as:
- Factory Automation: Integrating legacy devices with modern control systems.
- Power and Energy: Connecting different communication protocols in power distribution systems.
- Oil & Gas: Ensuring reliable communication in hazardous environments.
- Water and Wastewater: Facilitating data exchange between various monitoring and control systems.
- Its rugged design and wide operating temperature range make it suitable for deployment in challenging industrial settings.
⚙️ Installation Steps
- Power Connection: Connect the 12-48 VDC power supply to the terminal block of the MGate 5111-T. Ensure the adapter is connected to an earthed socket.
- Network Connections: Use a PROFIBUS cable to connect the MGate to a PROFIBUS PLC or other PROFIBUS master. Use an Ethernet cable to connect the MGate to the Modbus TCP client, Modbus TCP server device, PROFINET IO controller, or EtherNet/IP scanner device.
- Mounting: For DIN-rail mounting, push down the spring and attach it to the DIN rail until it “snaps” into place. For wall mounting, install the optional wall-mount kit first, then screw the device onto the wall.
User Experience
Users report that the MGate 5111-T offers:
- Ease of Configuration: The web-based wizard simplifies protocol conversion setup, reducing configuration time.
- Comprehensive Diagnostics: Built-in traffic monitoring and protocol diagnostics tools assist in identifying and resolving communication issues.
- Reliable Performance: The device’s rugged design and wide operating temperature range ensure stable operation in demanding environments.
- Security Features: Compliance with IEC-62443 standards provides secure communication, which is crucial in industrial networks.
What is the price of MOXA MGate5111-T Modbus Gateway in Bangladesh?
The estimated price of MOXA MGate5111-T Modbus Gateway in Bangladesh is 0৳. You can buy the MOXA MGate5111-T Modbus Gateway at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
