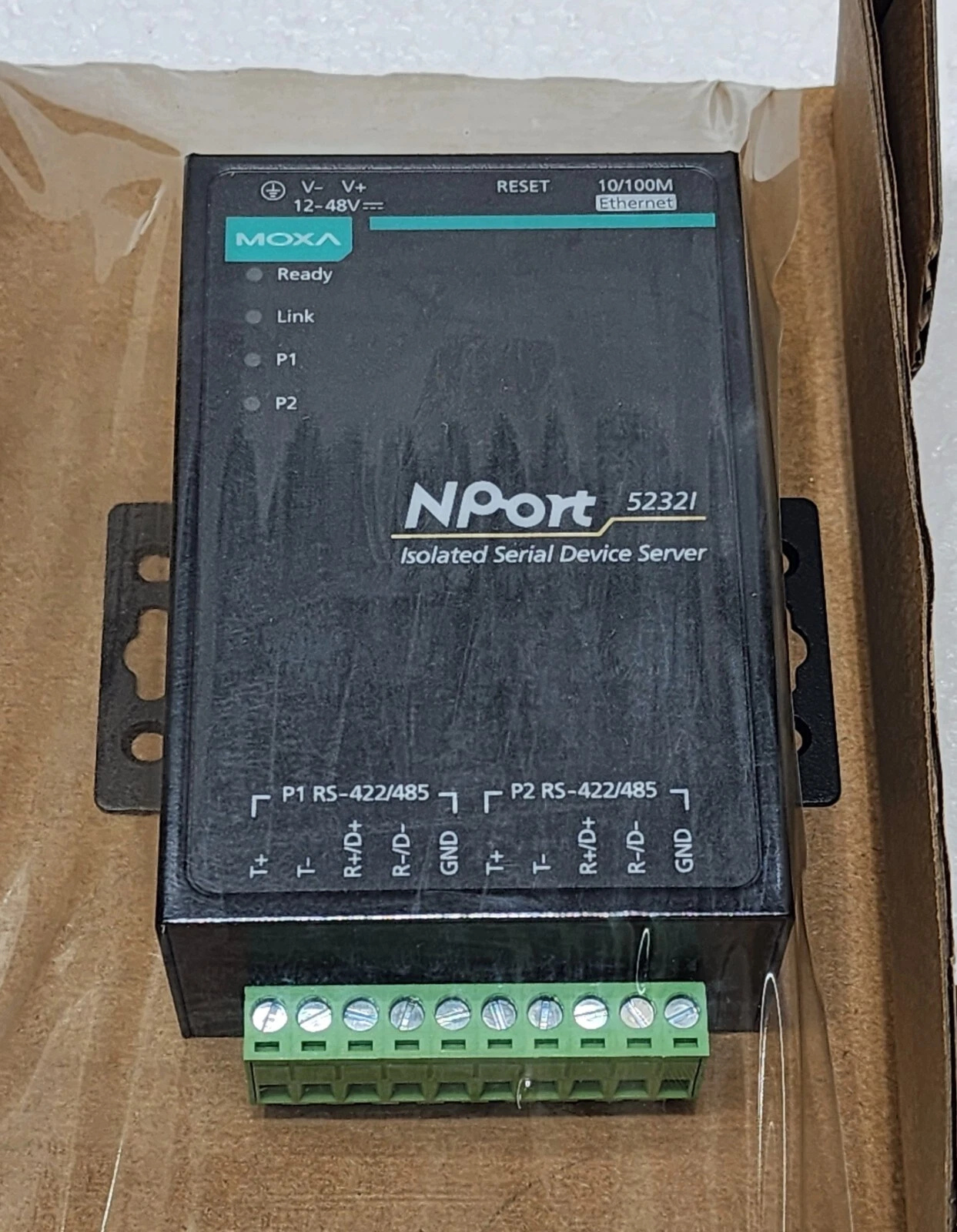

MOXA NPort 5232I RS-422/485 Device Server
The MOXA NPort 5232I RS-422/485 Device Server provides seamless serial-to-Ethernet connectivity for industrial devices. It supports robust and secure communication for multiple applications. Available at the best price in Bangladesh, it ensures reliable performance for automation systems and industrial networks.
Specification Table
| Feature | Specification |
|---|---|
| Model | NPort 5232I |
| Device Type | Serial Device Server (RS-422/485) |
| Serial Ports | 2 x RS-422/485 |
| Serial Communication | RS-422/485, up to 921.6 kbps |
| Ethernet Interface | 1 x 10/100 Mbps RJ45 Ethernet port |
| Operating Temperature | -40 to 75°C (Industrial Grade) |
| Storage Temperature | -40 to 85°C |
| Power Input | 12 to 48 VDC |
| Power Consumption | 2.5 W (typical) |
| Isolation | 2 kV isolation for serial and power ports |
| Protocols Supported | TCP/IP, UDP, DHCP, DNS, HTTP, SNMP, Modbus/TCP, Telnet |
| Connector | DB9 male (RS-422/485) |
| Housing | Rugged metal enclosure, DIN rail or wall mount |
| Dimensions | 30 x 130 x 110 mm |
| LED Indicators | Power, Link/Activity, Serial Tx/Rx |
| Certifications | CE, FCC, UL |
Description:
The MOXA NPort 5232I is an industrial-grade RS-422/485 device server designed for reliable serial-to-Ethernet communication in demanding environments. With two RS-422/485 serial ports, it enables multiple legacy devices, such as PLCs, sensors, and industrial controllers, to be integrated into modern Ethernet-based networks without complex rewiring. Supporting high-speed serial communication up to 921.6 kbps, the device ensures fast and stable data transfer for mission-critical industrial applications.
Equipped with a 10/100 Mbps Ethernet interface, the NPort 5232I provides seamless network connectivity and supports a wide range of standard network protocols, including TCP/IP, UDP, DHCP, Modbus/TCP, and Telnet. Its robust industrial design, with a wide operating temperature range of -40 to 75°C and 2 kV isolation for serial and power ports, guarantees continuous operation even in harsh industrial environments. The device can be mounted on DIN rails or walls, providing flexible installation options.
The metal housing, clear LED indicators, and low power consumption make it a practical and reliable solution for industrial automation. Ideal for applications in factory automation, process control, and remote monitoring, the NPort 5232I allows businesses to modernize their legacy serial devices while maintaining data integrity and communication efficiency over Ethernet networks.
Key Features:
Supports 32-port RS-422/485 serial device connections.
Reliable serial-to-Ethernet communication for industrial networks.
High-speed data transmission with up to 921.6 kbps.
Advanced security features including SSL and SSH encryption.
Easy-to-use web console and software for configuration and management.
Rugged design suitable for harsh industrial environments.
Supports multiple operating systems including Windows, Linux, and Unix.
Where it Can Be Used:
Factory automation systems for connecting multiple serial devices to a network.
SCADA and monitoring systems for industrial data collection.
Remote device management in utility, energy, and transportation sectors.
Any environment requiring secure and reliable serial-to-Ethernet communication.
Installation Steps:
Mount the device in a suitable rack or DIN rail.
Connect RS-422/485 serial devices to the corresponding ports.
Connect the Ethernet port to the network switch or router.
Configure IP settings using the web console or configuration utility.
Test communication with connected devices and ensure proper data flow.
User Experience:
Users report stable and reliable performance even in demanding industrial environments. The setup is straightforward, and the intuitive web interface simplifies configuration. Remote monitoring and control capabilities reduce the need for on-site maintenance. Overall, it provides secure, high-speed, and efficient serial-to-Ethernet communication, enhancing productivity and network management.
What is the price of MOXA NPort 5232I RS-422/485 Device Server in Bangladesh?
The estimated price of MOXA NPort 5232I RS-422/485 Device Server in Bangladesh is 0৳. You can buy the MOXA NPort 5232I RS-422/485 Device Server at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
