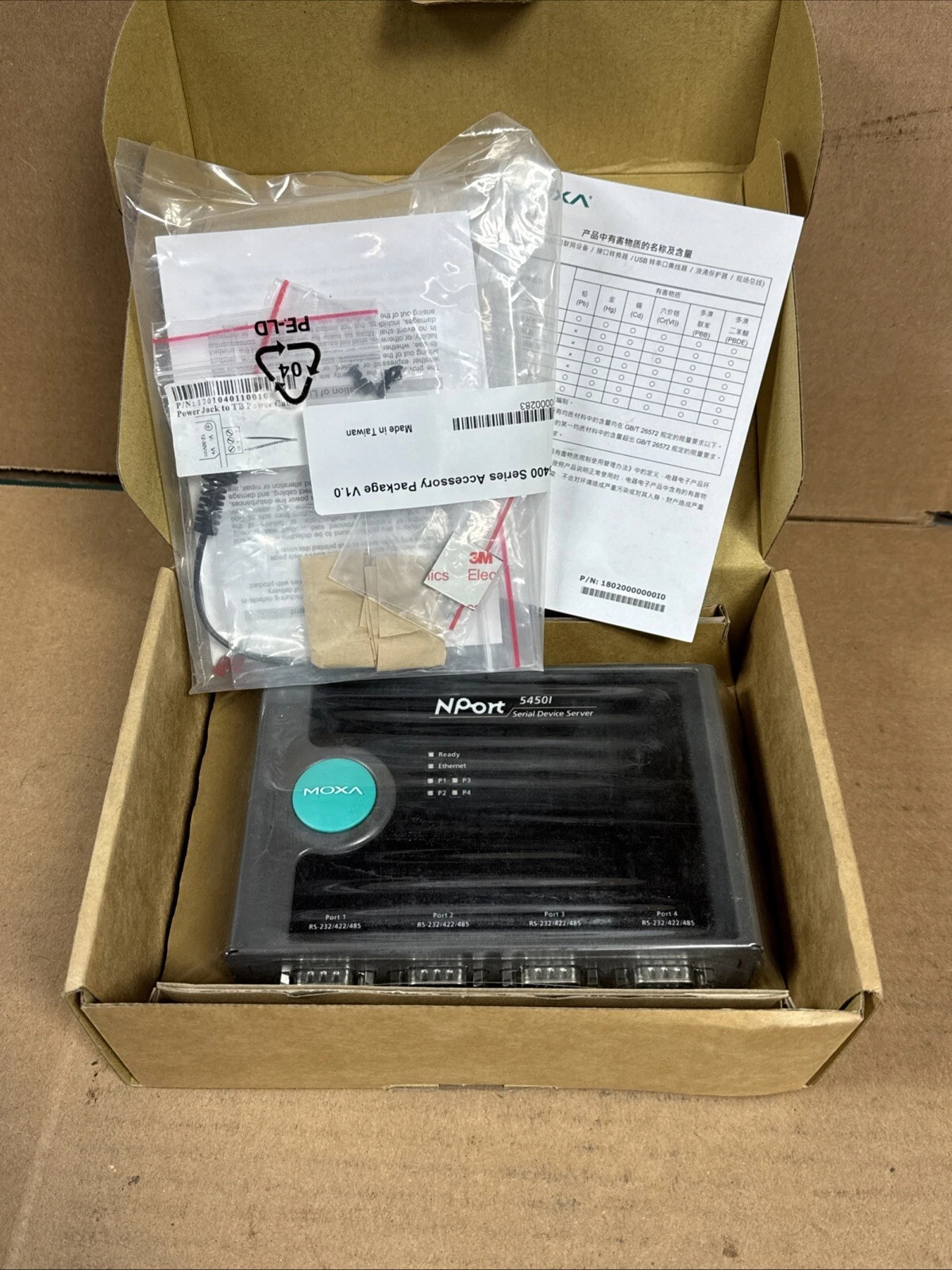

MOXA NPort 5450I-T Serial to Ethernet Adapter Card
The MOXA NPort 5450I-T Serial to Ethernet Adapter Card offers seamless connectivity for serial devices over Ethernet networks. Designed for industrial applications, it ensures reliable data transmission and network stability. Available in Bangladesh, this adapter provides an efficient solution for modern networking needs.
Specification Table
| Feature | Details |
|---|---|
| Model | NPort 5450I-T |
| Serial Ports | 4 x RS-232/422/485 (DB9 male) |
| Ethernet Interface | 1 x 10/100BaseT(X) (RJ45) |
| Isolation Protection | 2 kV (RS-232/422/485) / 1.5 kV (Ethernet) |
| Operating Temperature | -40 to 75°C |
| Power Input | 12 to 48 VDC (dual DC inputs) |
| Power Consumption | 554 mA @ 12 VDC |
| Mounting Options | Desktop, DIN rail (with optional kit), Wall mount |
| Physical Dimensions | 158 x 103 x 33 mm (without ears) |
| Weight | 740 g |
| Housing | Metal |
| LCD Panel | Yes (for standard temperature models) |
| Configuration Methods | Web Console (HTTP/HTTPS), Telnet, Windows Utility |
| Protocols Supported | ARP, BOOTP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SNMPv1/v2c, SMTP, UDP |
| Baud Rate Support | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity Options | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF (RS-232) |
| RS-485 Features | Terminator (120 Ω), Pull-up/Pull-down Resistors (1 kΩ, 150 kΩ) |
| Certifications | UL 60950-1, EN 60950-1, CE, FCC, EN 55024, EN 55032, EN 60601-1-2, DNV-GL |
| MTBF | 206,903 hours |
ℹ️ Description
The Moxa NPort 5450I-T is a robust 4-port serial-to-Ethernet device server designed to seamlessly integrate industrial serial devices into Ethernet networks. Supporting RS-232, RS-422, and RS-485 interfaces via DB9 connectors, it offers versatile connectivity options for various applications. The device operates over a wide temperature range of -40 to 75°C, making it suitable for harsh industrial environments.
Equipped with dual DC power inputs (12 to 48 VDC), the NPort 5450I-T ensures reliable operation with a power consumption of 554 mA at 12 VDC. Its metal housing provides durability, and the inclusion of an LCD panel (for standard temperature models) facilitates easy installation and configuration. Users can manage the device through multiple interfaces, including web console, Telnet, and Windows utility, supporting protocols like ARP, BOOTP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SNMPv1/v2c, SMTP, and UDP.
With baud rate support ranging from 50 bps to 921.6 kbps, the NPort 5450I-T accommodates various communication needs. It also features adjustable termination and pull-up/pull-down resistors for RS-485 applications, ensuring signal integrity in demanding environments. Certifications such as UL 60950-1, EN 60950-1, CE, FCC, EN 55024, EN 55032, EN 60601-1-2, and DNV-GL attest to its compliance with international safety and electromagnetic standards.
Key Features
- Serial-to-Ethernet Connectivity: Converts RS-232/422/485 serial devices to Ethernet for network integration.
- High Performance: Supports up to 230.4 Kbps for fast serial communication.
- Multiple Ports: Provides 4 serial ports in a single adapter card for efficient device management.
- Industrial-Grade Reliability: Built for industrial environments with wide temperature and vibration tolerance.
- Flexible Network Protocols: Supports TCP/IP, UDP, Telnet, and RFC 2217 for diverse applications.
- Easy Configuration: Includes user-friendly software for quick setup and monitoring.
Where it Can Be Used?
- Industrial Automation: Connect PLCs, sensors, and other serial devices to Ethernet networks.
- Transportation Systems: Integrate serial-based devices in traffic control and railway applications.
- Energy & Utilities: Monitor and control power systems, substations, and smart grids.
- Retail & Banking: Connect serial-based POS terminals, ATMs, and other legacy devices.
- Remote Device Management: Facilitate remote monitoring and control of devices over LAN/WAN.
Installation Step
- Insert the Card: Install the NPort 5450I-T into an available PCI/PCIe slot in your server or industrial PC.
- Connect Serial Devices: Attach RS-232/422/485 devices to the serial ports using compatible cables.
- Network Connection: Connect the adapter to the Ethernet network using a standard RJ45 cable.
- Install Driver & Software: Use Moxa’s software utilities to detect the card and configure IP and serial settings.
- Testing: Verify connectivity by pinging the device and testing serial communication.
What is the price of MOXA NPort 5450I-T Serial to Ethernet Adapter Card in Bangladesh?
The estimated price of MOXA NPort 5450I-T Serial to Ethernet Adapter Card in Bangladesh is 0৳. You can buy the MOXA NPort 5450I-T Serial to Ethernet Adapter Card at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
